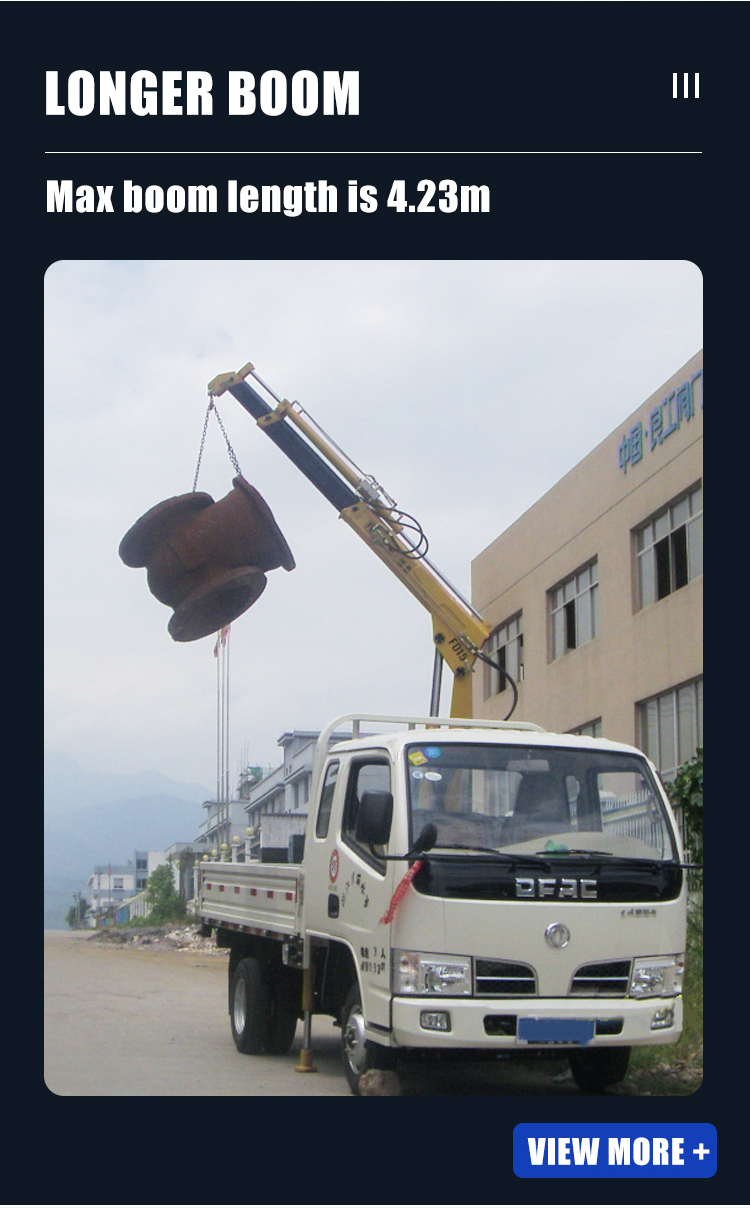

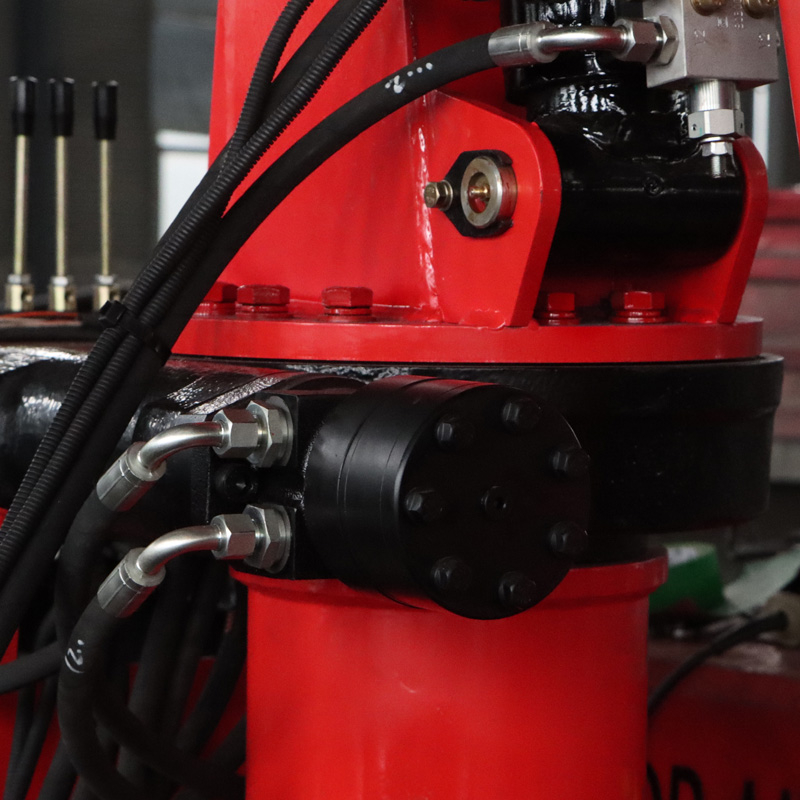

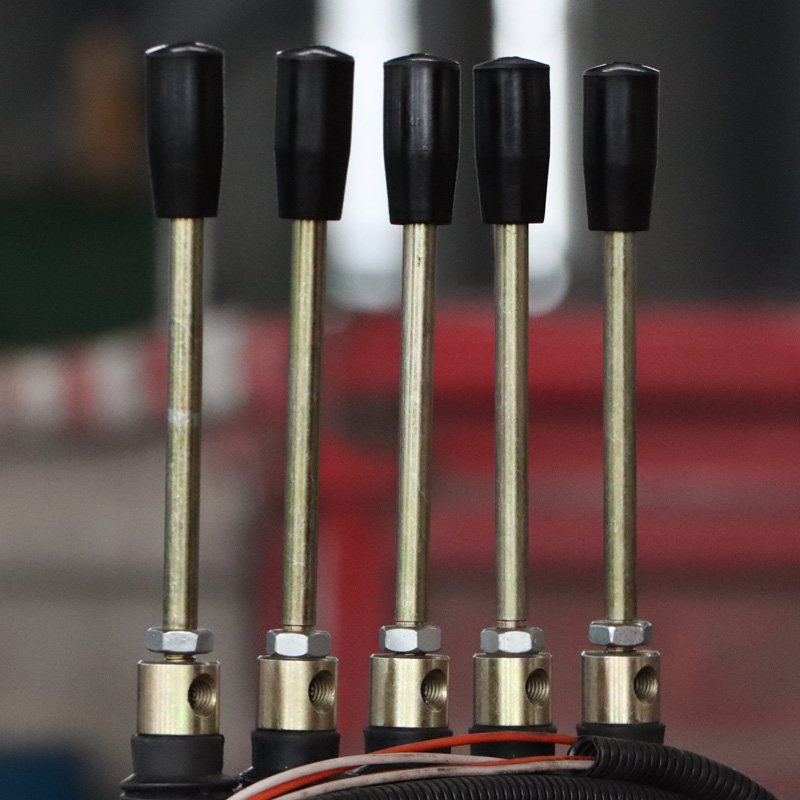

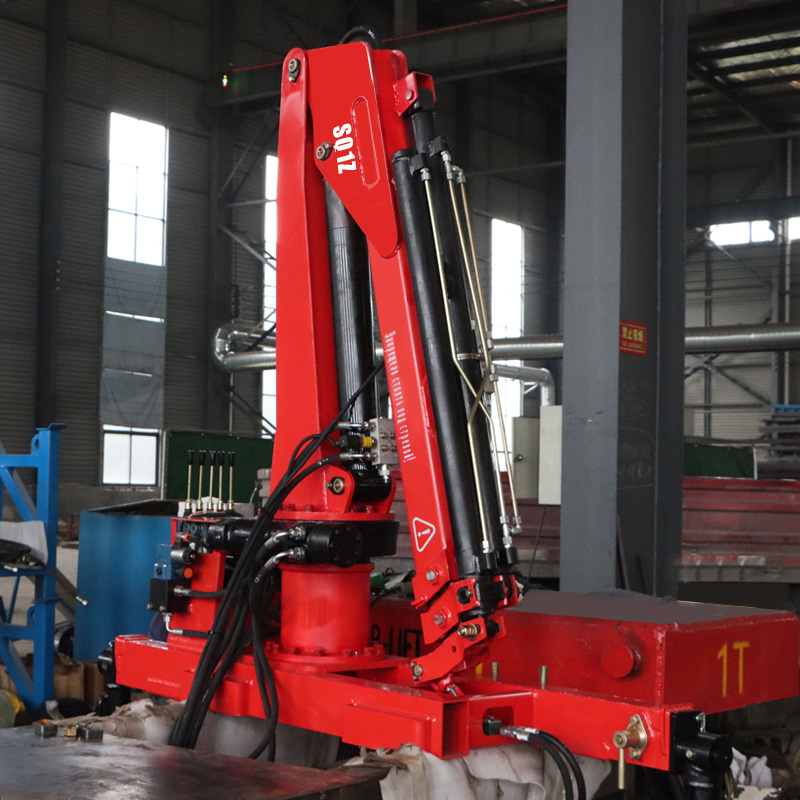

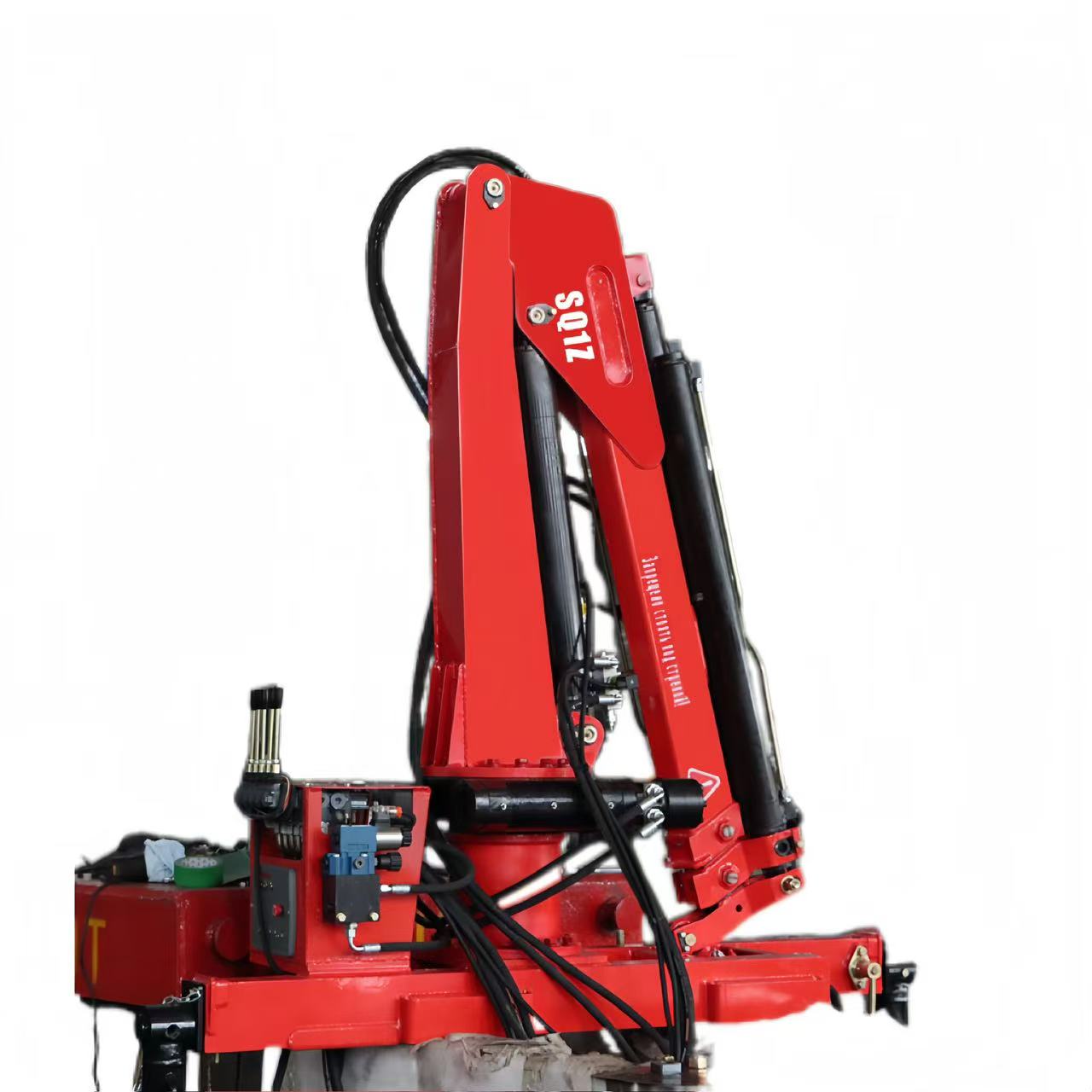

The SQ1ZA4 is a 1.6 ton knuckle boom truck crane. It lifts 1,600 kg at 1.39 m, 990 kg at 2.3 m and 180 kg at its full 4.23 m reach, with a maximum lifting moment of 2.2 t·m and 330° slewing. The crane itself weighs 490 kg.
What the 1.6 ton SQ1ZA4 is built for
The SQ1ZA4 folds its boom into a compact package behind the cab: stowed, it is 1,750 mm wide and 1,760 mm high. It needs 550 mm of installation space behind the cab. It suits small trucks and pickups delivering building materials, gas cylinders and garden supplies, and service vehicles that lift pumps, engines and tools.
Rated capacity always depends on radius. At 3.25 m the SQ1ZA4 lifts 470 kg and at 4.23 m it lifts 180 kg, so check the weight of your heaviest regular load at the distance you need before you choose a tonnage.

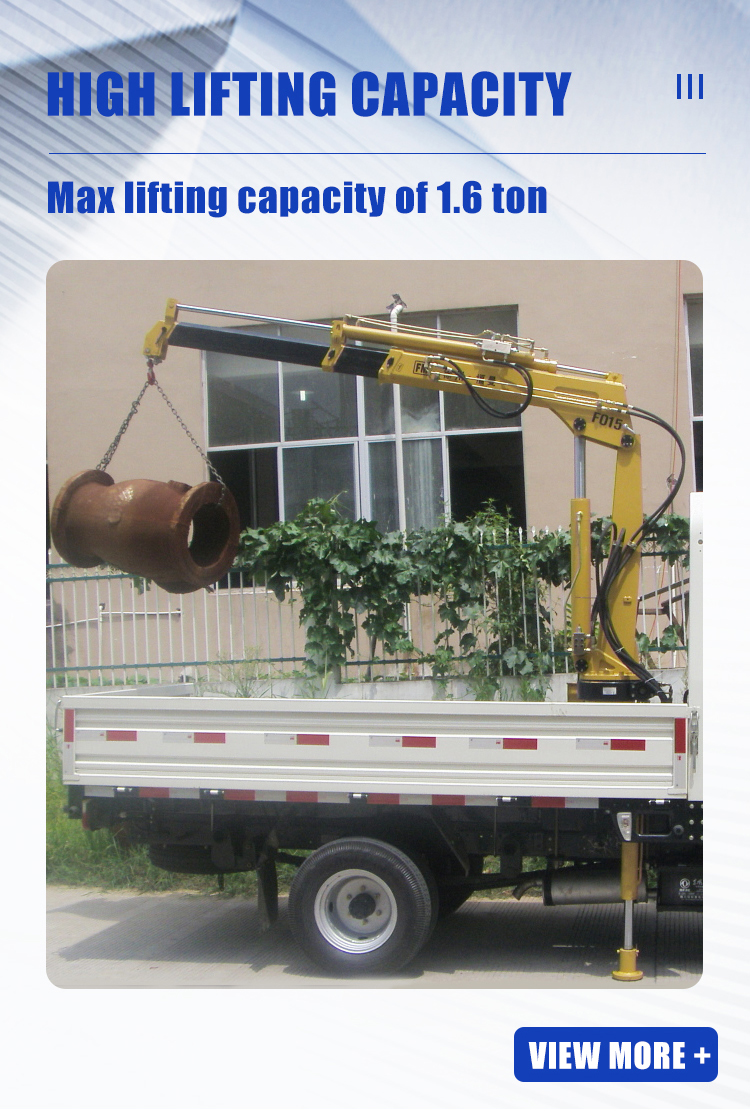

Load at each radius
| 1.39 m |
1,600 kg |
| 2.3 m |
990 kg |
| 3.25 m |
470 kg |
| 4.23 m |
180 kg |
Figures from the SQ1ZA4 load chart with the boom horizontal. Do not lift more than the chart shows at your working radius. Download the SQ1ZA4 load chart (PDF)
Mounting it on your truck
Your body builder mounts the crane on the chassis behind the cab, using these figures from the dimension drawing:
| Installation space behind the cab |
550 mm |

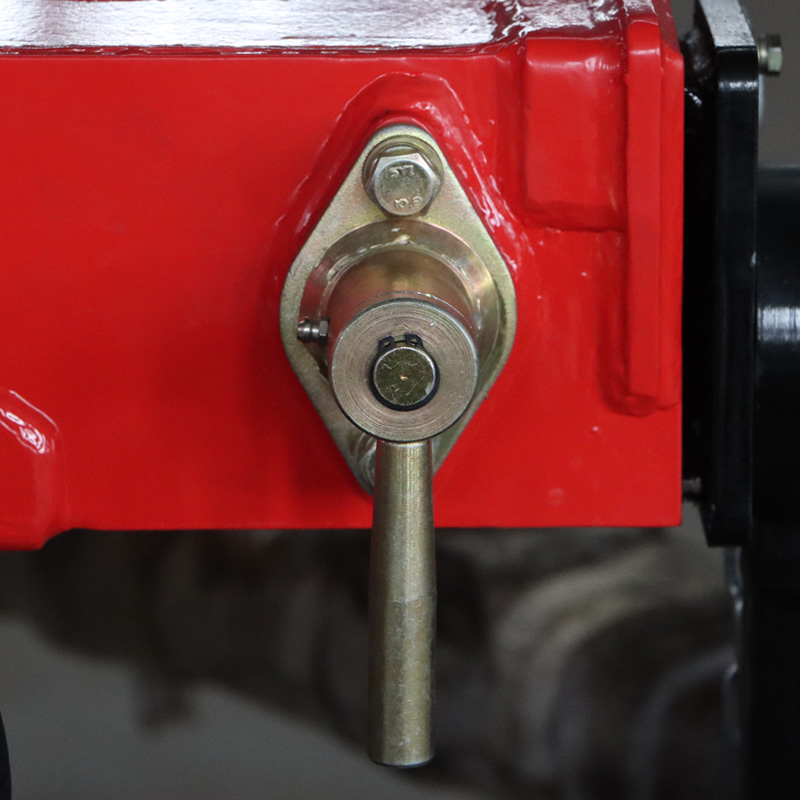

| Outrigger span |
1,565–3,095 mm |
| Width of the crane when stowed |
1,750 mm |
| Height of the crane when stowed |
1,760 mm |

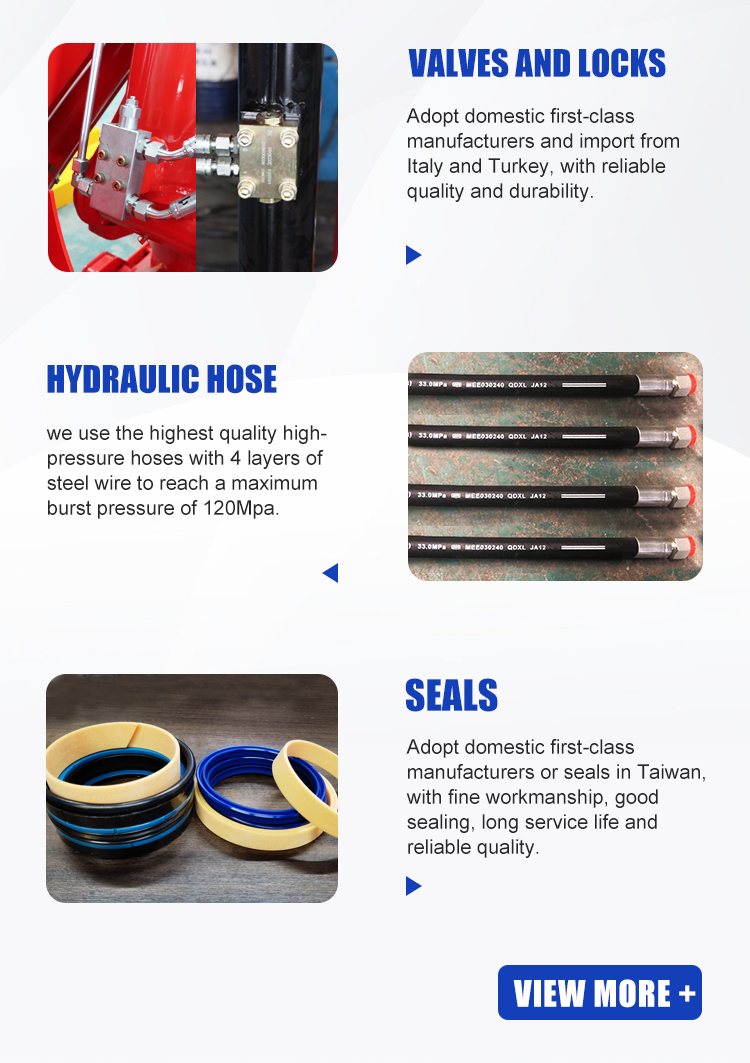

| Hydraulic supply |
15 L/min at 18 MPa, about 7.5 kW |
| Oil tank |
25 L |
Send us your truck make, model and wheelbase, and we check that the chassis and power take-off suit the crane before you order. Download the SQ1ZA4 dimension drawing (PDF)
Warranty and service
BOB-LIFT covers the whole crane for 12 months. Common spare parts leave the factory within 48 hours, and our service team answers within 12 hours and can guide repairs by video. Cranes ship from Lianyungang, Qingdao or Shanghai.
All knuckle boom truck cranes · How to choose a knuckle boom crane
Optional attachments
- Hydraulic gripper opened and closed by its own cylinder to grab and release loads.
- Clamshell bucket for loading, unloading and light digging of waste, chippings and soil.
- Orange peel grab for scrap and bulk material.
- Timber grapple for logs and timber.
- Auger for tree-planting holes, utility poles, foundation piles and soil sampling.
Certification
The SQ1Z series holds a CE certificate of conformity under the EU Machinery Directive 2006/42/EC.
Choosing the right model
Need more than 1.6 t? The next class up is the SQ2ZA4 at 2 t.
Before ordering, check that the truck's power take-off can deliver 15 L/min at 18 MPa. We recommend 7.5 kW of hydraulic power. Its self weight of 490 kg adds to the load on the truck, so allow for it in the payload.
