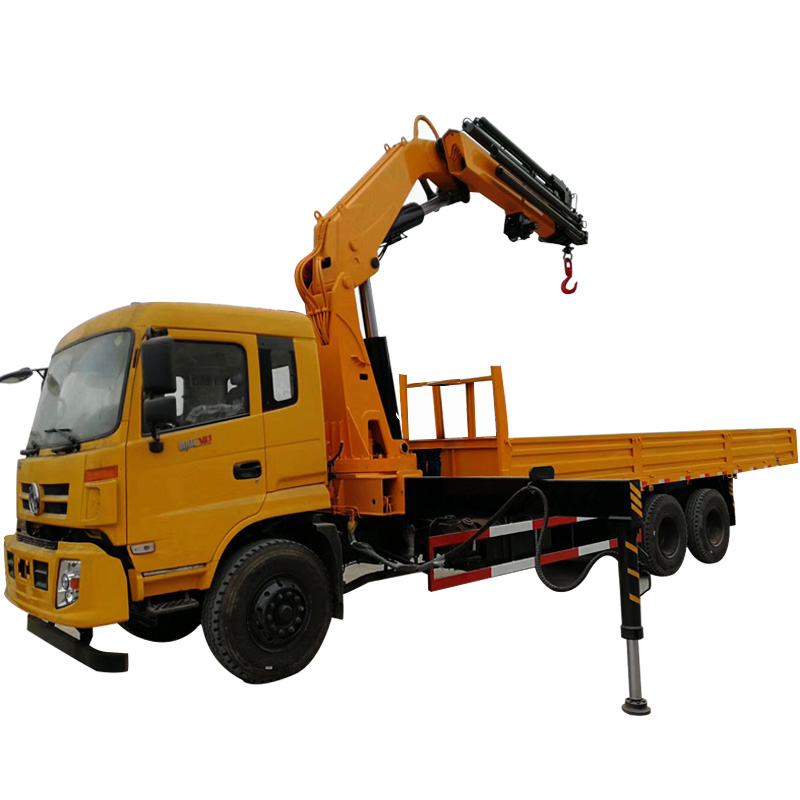

25 Ton Knuckle Boom Truck Mounted Crane

Welcome to buy 25 Ton Knuckle Boom Truck Mounted Crane from BOB-LIFT. Every request from customers is being replied within 24 hours.
  • SQ25ZA6

BOB-LIFT is one of the professional 25 Ton Knuckle Boom Truck Mounted Crane manufacturers and suppliers in China. We are willing to work hand in hand with every customer for mutual benefit and development. Over the years, we have been focusing on research in the field of 25 Ton Knuckle Boom Truck Mounted Crane. With rich experience and professional technology, we have established our own BOB-LIFT brand in China and have achieved good response. Our products are durable and easy to maintain, favored by domestic and foreign customers.

25 Ton Knuckle Boom Truck Mounted Crane Specifications

Max Lifting Capacity Ton 25000kg
Max Lifting Moment Ton.m 62.5 ton.m
Recommend Power KW 50KW
Hydraulic System Flow L/min 80L/Min
Hydraulic System Pressure MPa 31.5Mpa
Oil Tank Capacity L 300L
Installation Space mm 1500mm
Self Weight kg 7850kg
Rotation angle ° 360°

25 Ton Knuckle Boom Truck Mounted Crane Features And Applications

1. Advanced development & analysis make sure design is very reliable

2. The structure design is more compact, lighter self-weight, greater load ratio, the whole line is reasonable, beautiful.

3. The crane above 6.3T adopts square legs, which can better protect the cylinder.

4. Higher lifting capacity with link-rod system.

5. Outer boom can enter tilt upward(negative elevation angle), so that the crane can enter the lower working space for lifting.

6. Flage telescopic boom coupling technology.

7. Rack cylinder adopted inclined arrangement, boom in folding state to make full use of space, compact overall structure, lower center of gravity and vehicle driving stability.

8. The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.

9. Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling

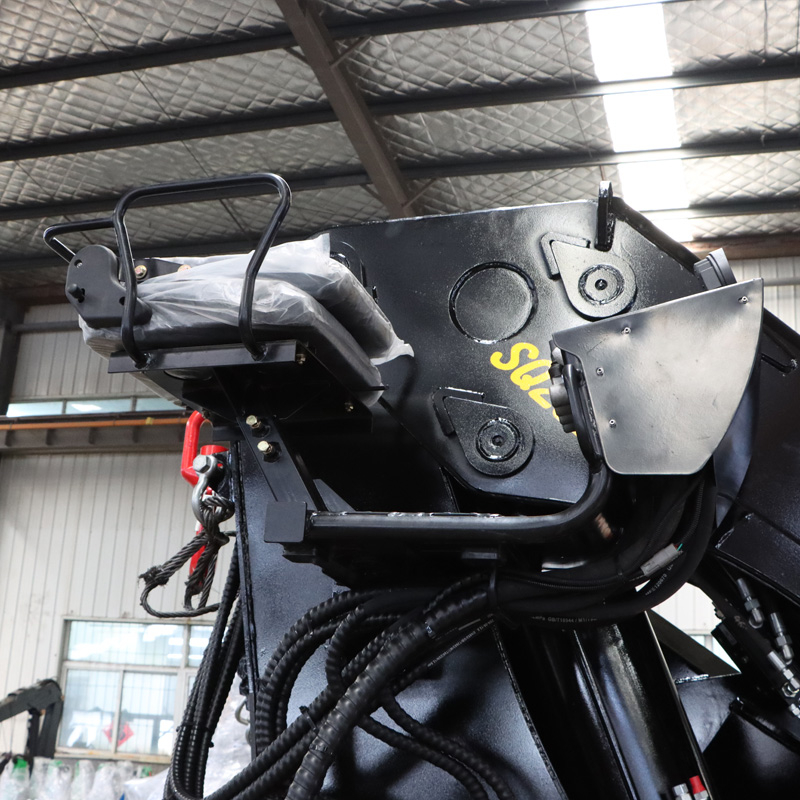

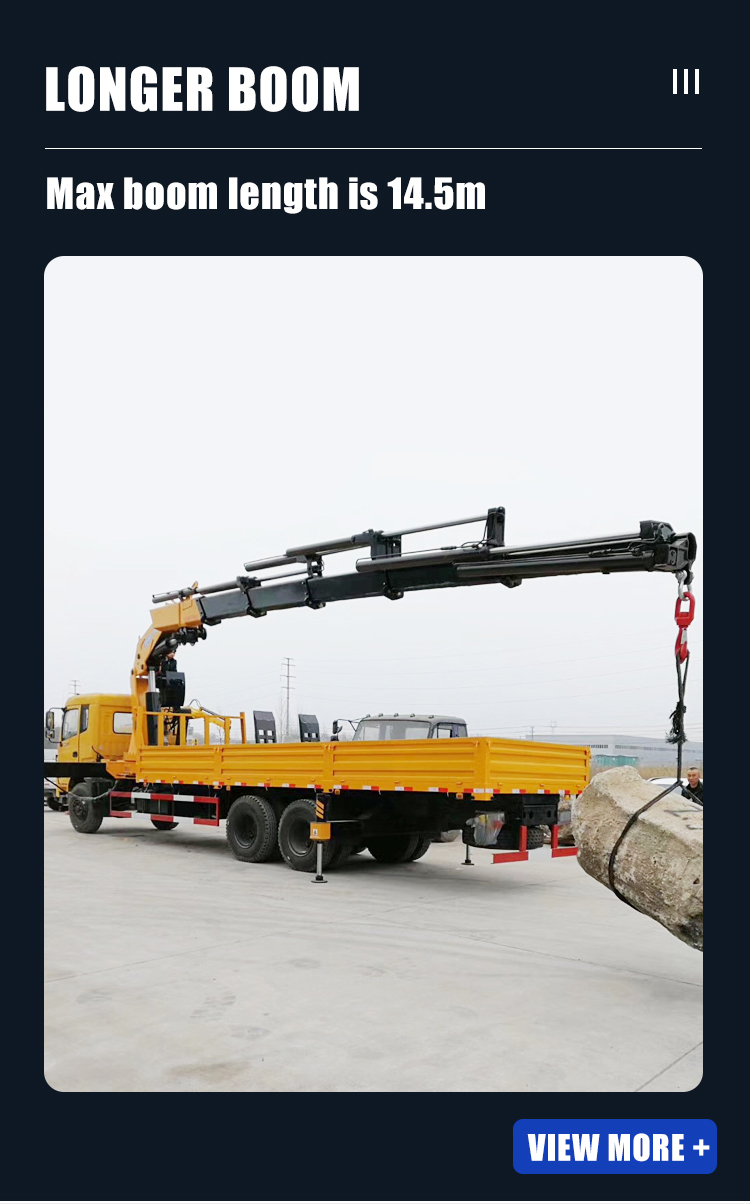

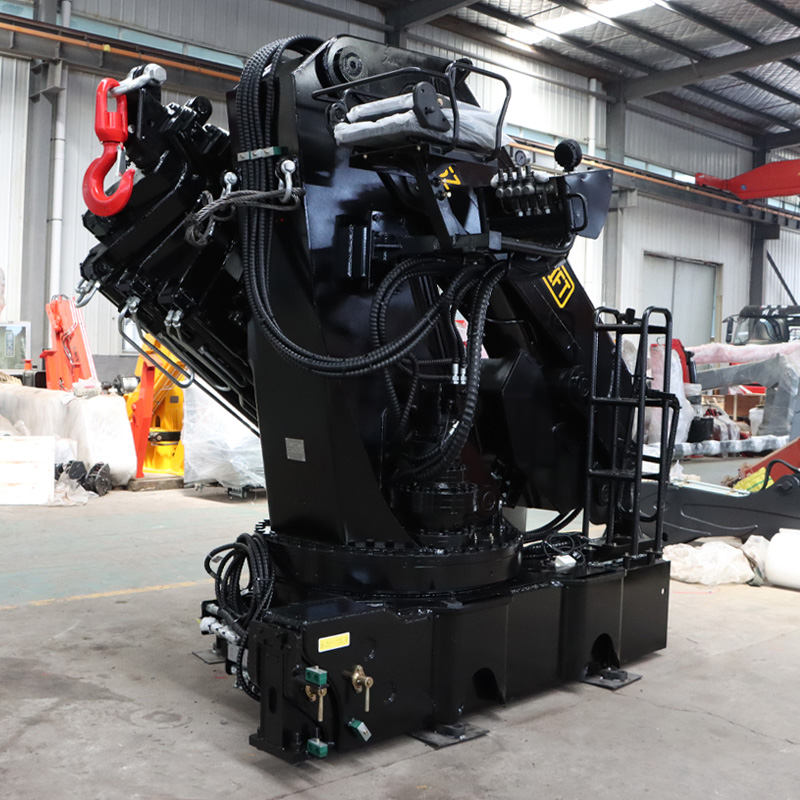

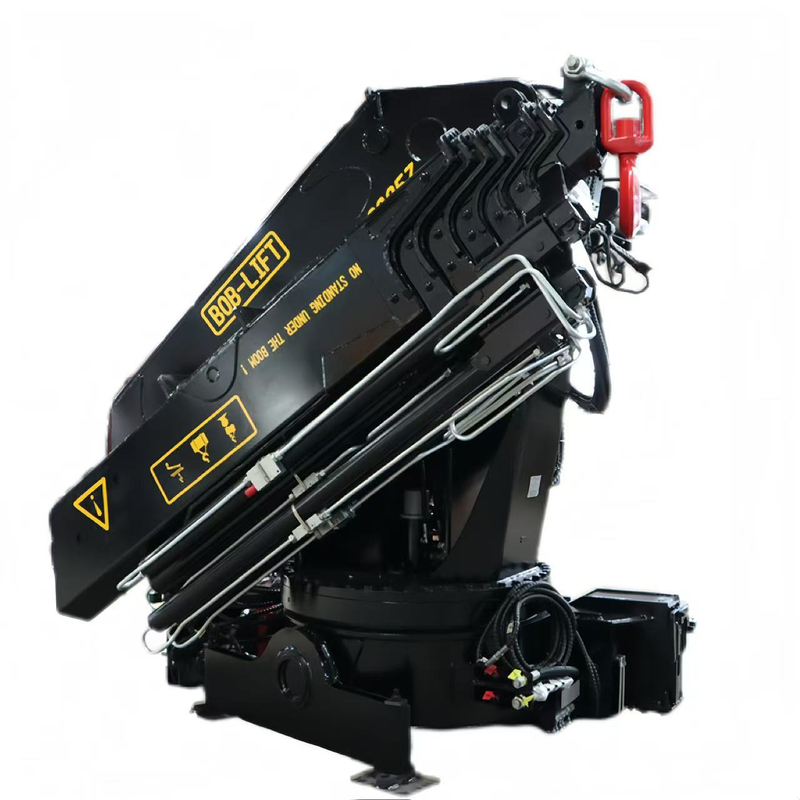

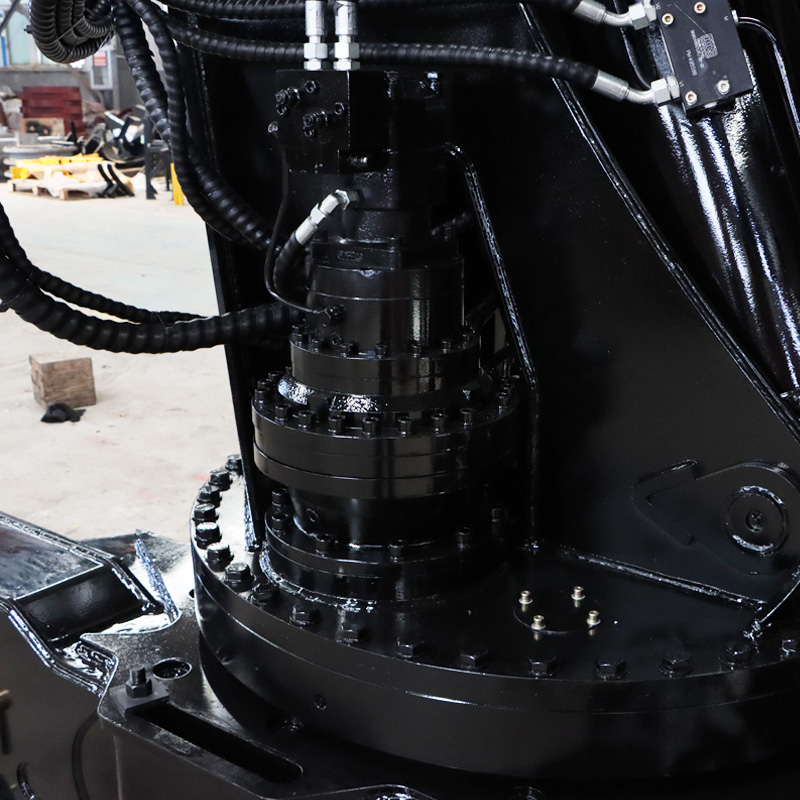

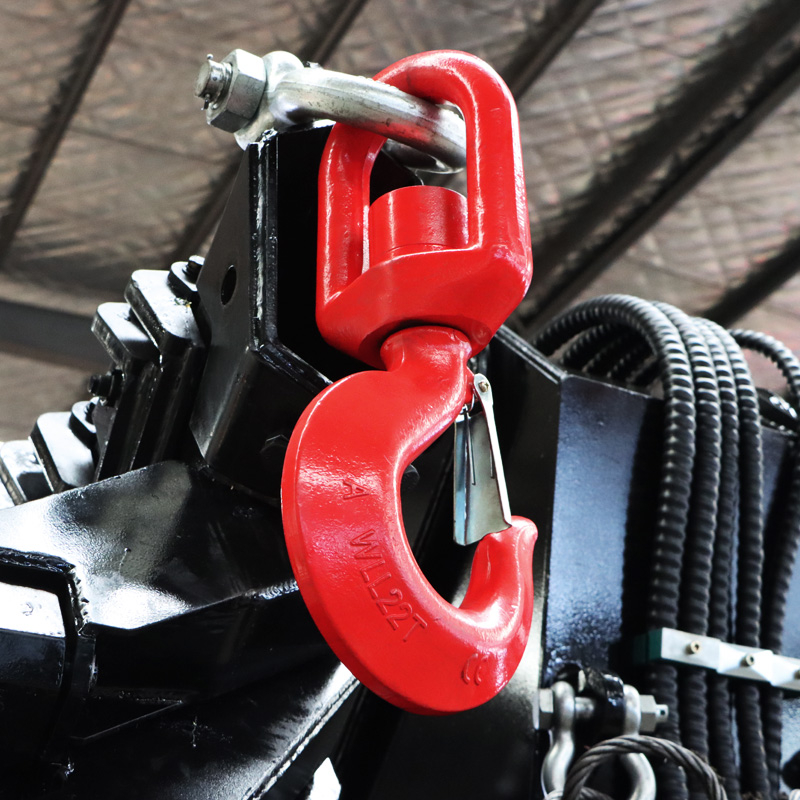

25 Ton Knuckle Boom Truck Mounted Crane details:
