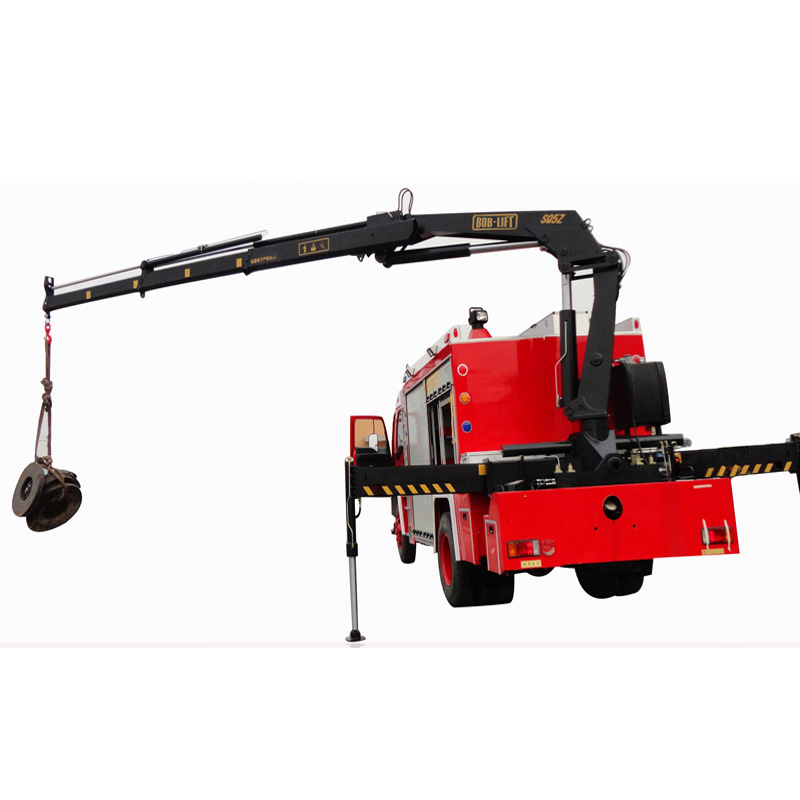

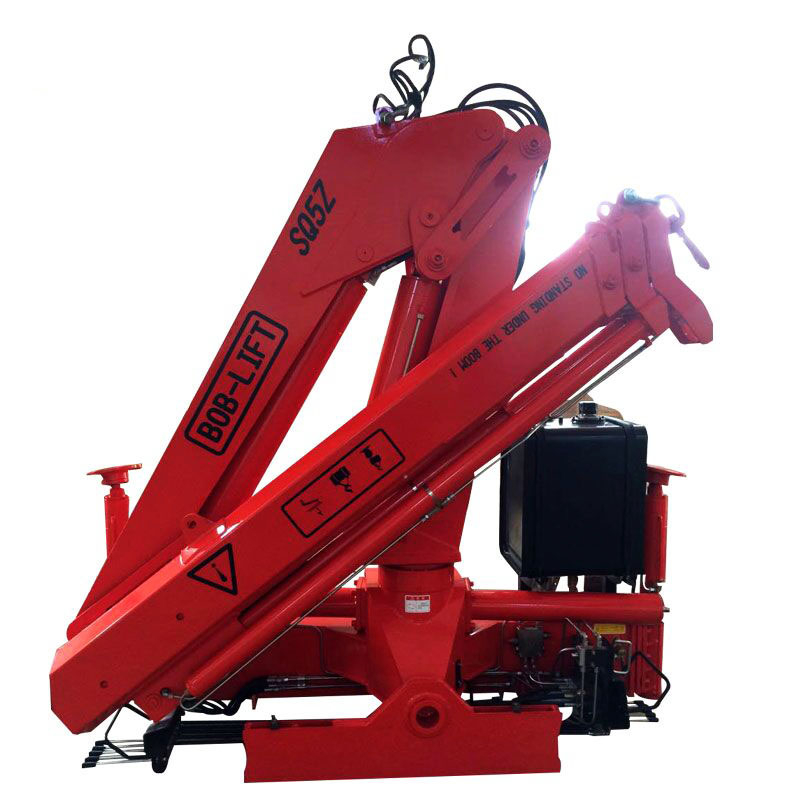

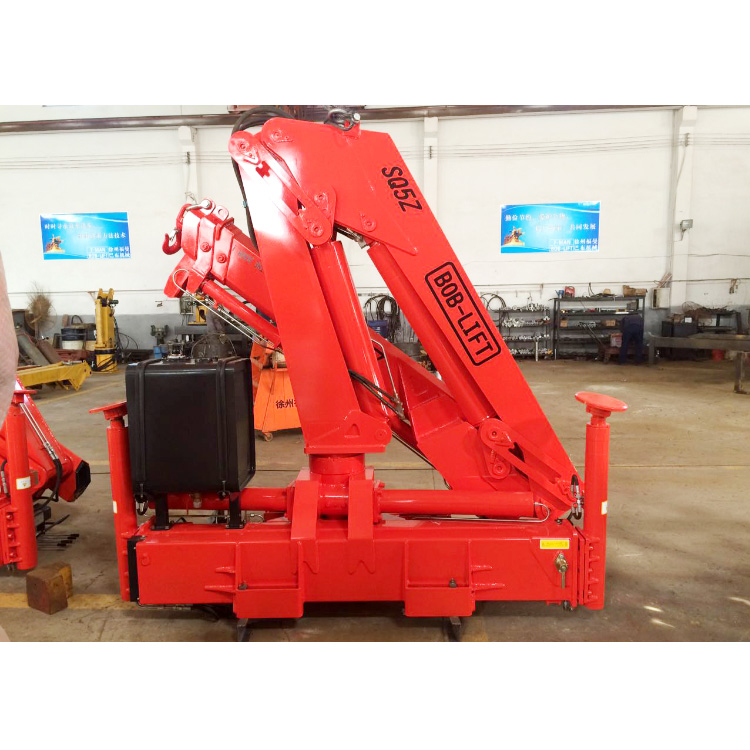

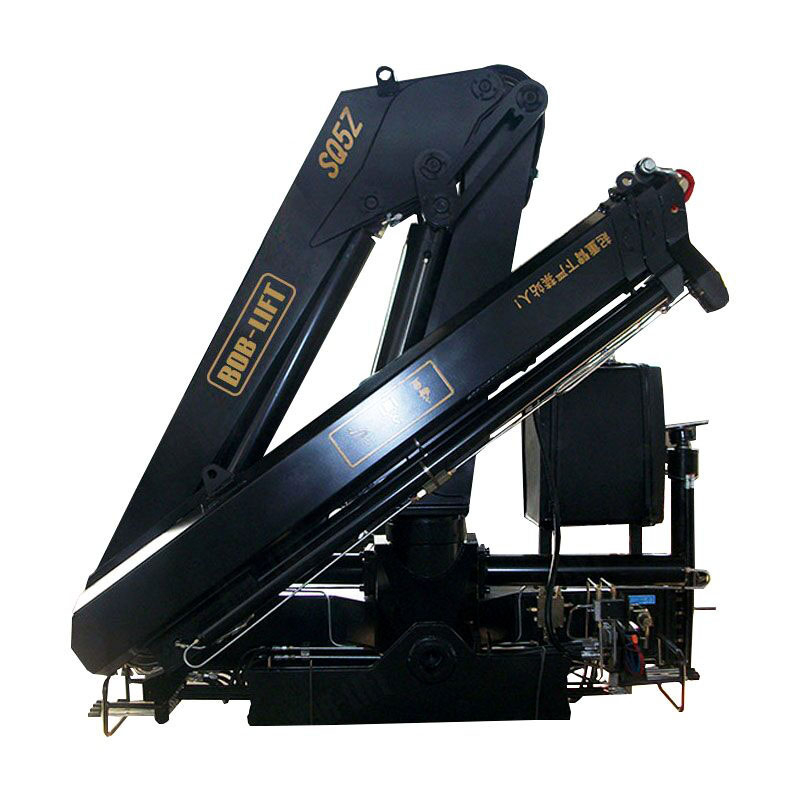

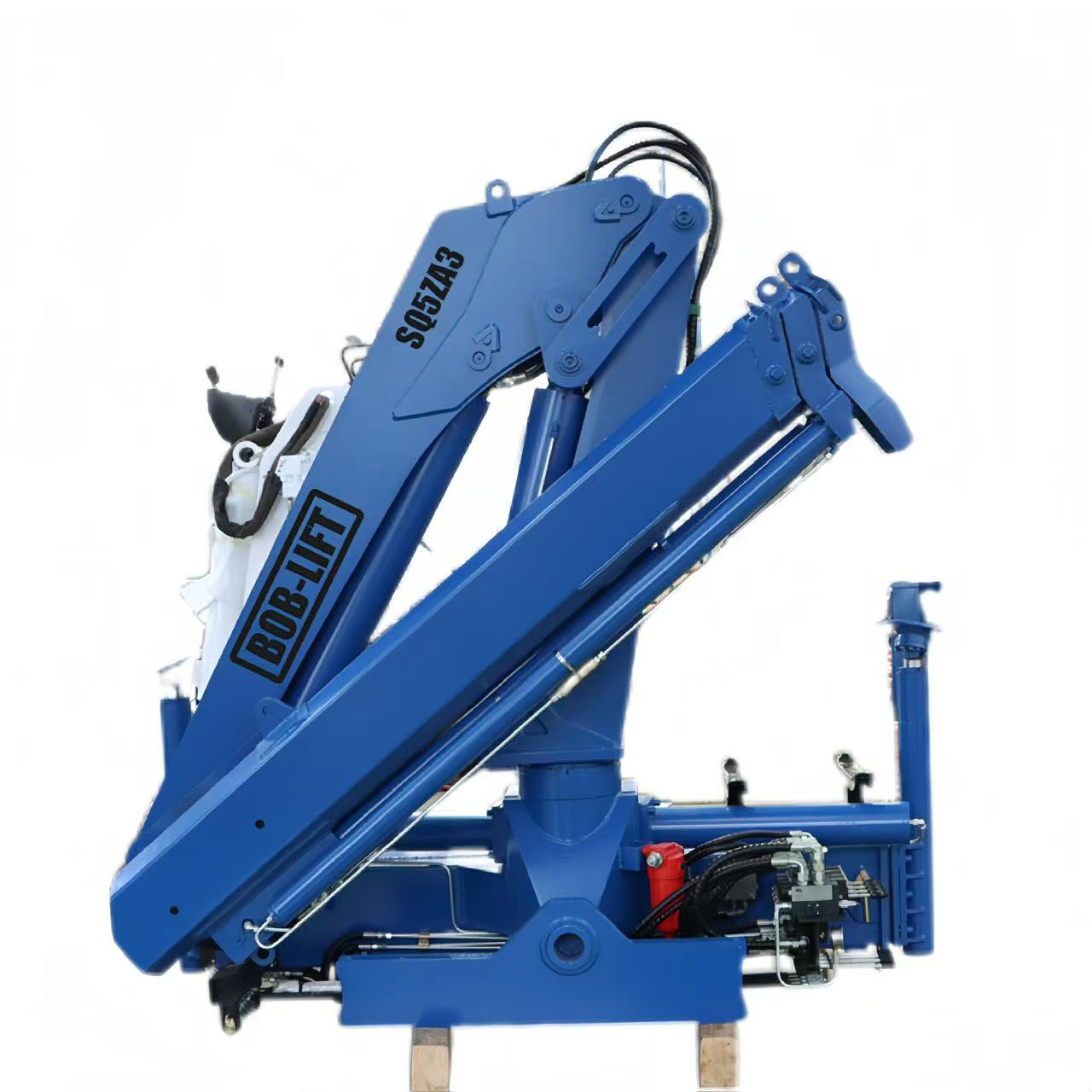

5 Ton Knuckle Boom Truck Mounted Crane
  • 5 Ton Knuckle Boom Truck Mounted Crane5 Ton Knuckle Boom Truck Mounted Crane
  • 5 Ton Knuckle Boom Truck Mounted Crane5 Ton Knuckle Boom Truck Mounted Crane
  • 5 Ton Knuckle Boom Truck Mounted Crane5 Ton Knuckle Boom Truck Mounted Crane
  • 5 Ton Knuckle Boom Truck Mounted Crane5 Ton Knuckle Boom Truck Mounted Crane
  • 5 Ton Knuckle Boom Truck Mounted Crane5 Ton Knuckle Boom Truck Mounted Crane
  • 5 Ton Knuckle Boom Truck Mounted Crane5 Ton Knuckle Boom Truck Mounted Crane

5 Ton Knuckle Boom Truck Mounted Crane

BOB-LIFT as a professional 5 Ton Knuckle Boom Truck Mounted Crane manufacture, you can rest assured to buy 5 Ton Knuckle Boom Truck Mounted Crane from our factory and we will offer you the best after-sale service and timely delivery.

Model:SQ5ZA2

Send Inquiry    PDF DownLoad

Product Description

BOB-LIFT as one of the professional 5 Ton Knuckle Boom Truck Mounted Crane manufacturers and suppliers in China. Xuzhou BOB-LIFT adheres to the enterprise spirit of "sincerity, stability, innovation and cooperation", and has customized strict quality system requirements from the beginning of the company's establishment in terms of product design, procurement, manufacturing, testing and service, etc. Over the years, we have been focusing on research in the field of 5 Ton Knuckle Boom Truck Mounted Crane. Our development strategy is to build a "leading technology and excellent service" in China's truck-mounted crane industry.

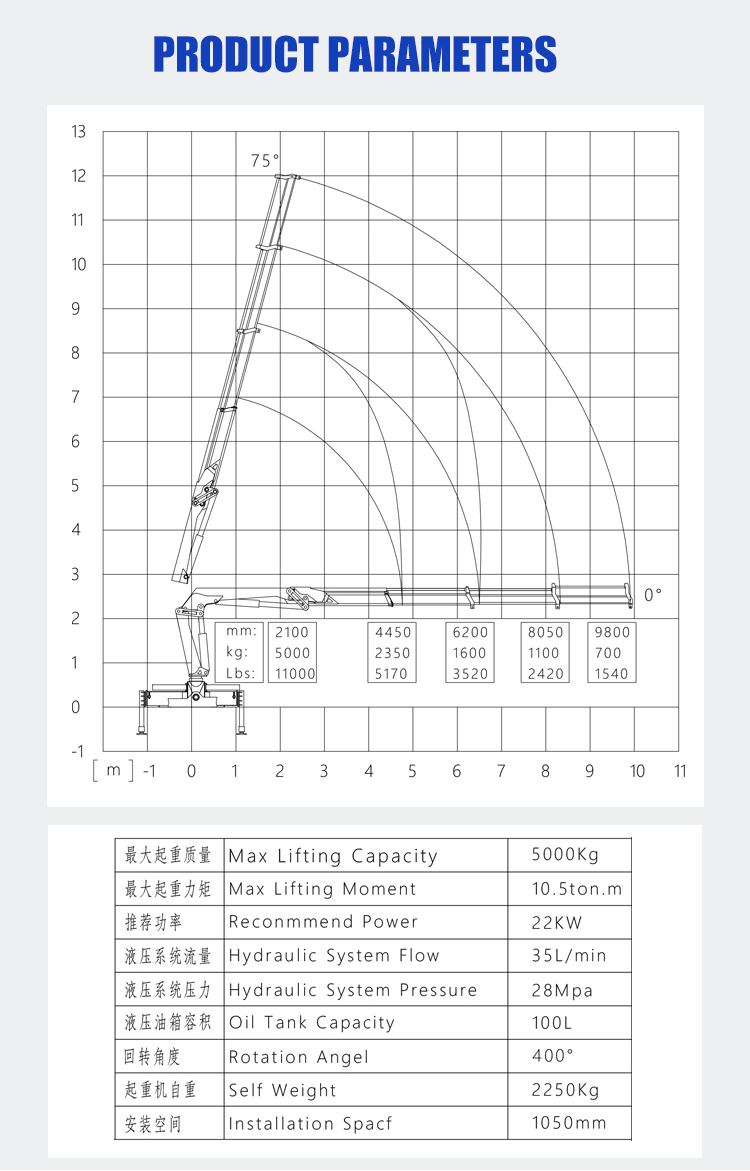

5 Ton Knuckle Boom Truck Mounted Crane Specifications

Product Parameters (SQ5ZA2)

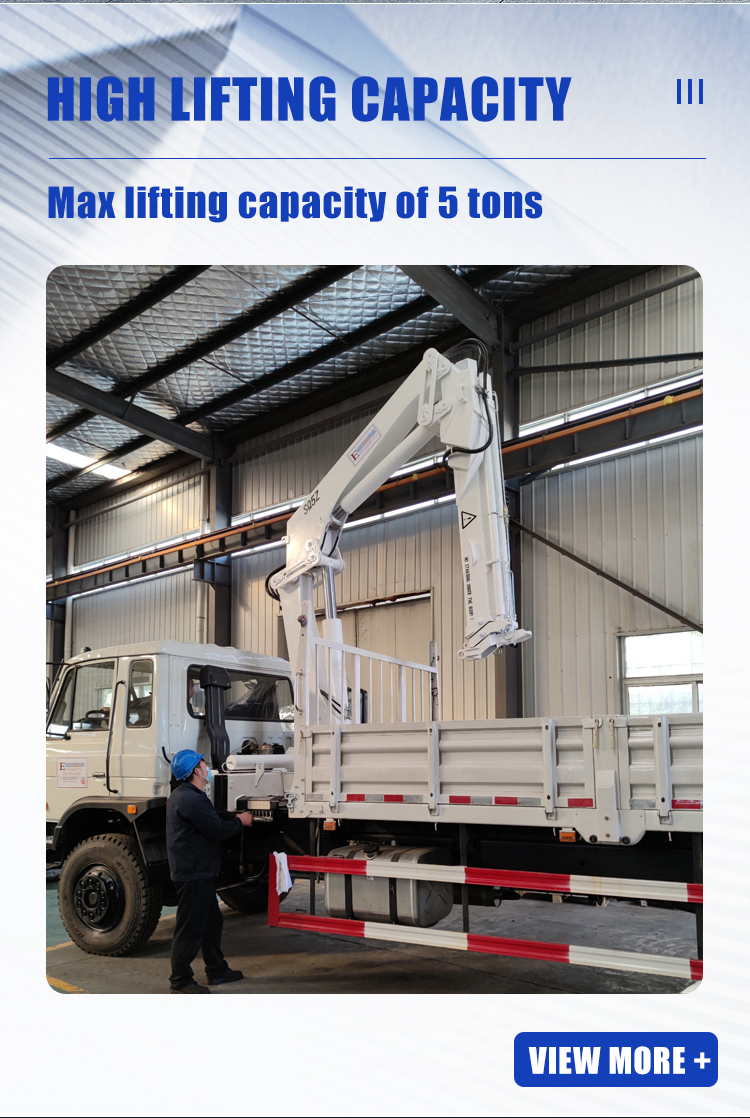

Max Lifting Capacity 5000kg
Max Lifting Moment 10.5ton.m
Recommend Power 22KW
Hydraulic System Flow 35L/Min
Hydraulic System Pressure 28Mpa
Coil Tank Capacity 100L
Installation Space 1050mm
Self Weight 1850kg
Rotation Angle 400°


5 Ton Knuckle Boom Truck Mounted Crane Features And Applications

1. Advanced development & analysis make sure design is very reliable

2. Using two-section telescopic cylinder design, one of the cylinder push the second large boom, another cylinder push the rest of the telescopic boom by the pulley block

and wirerope. To ensure that the crane has strong lifting capacity in the middle distance and effectively protect the wire rope in the boom.

3. The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

4. The boom interface is made of strong steel plate, and the U-shaped arm is used for the crane above 8T, which makes the cross-section bending resistance stronger.

5. The crane above 6.3T adopts square legs, which can better protect the cylinder.

6. Compact boom head and tail design, make the boom length to reach maximum, prolong the working life of hydraulic system.

7. The integer lifting winch improved the working efficient greatly and prolonged work life of hydraulic system.

8. Integral boom hear structure with more strength. Boom head adopting integral structure, greater intensity. Split head design reduces the boom head carrying capacity.

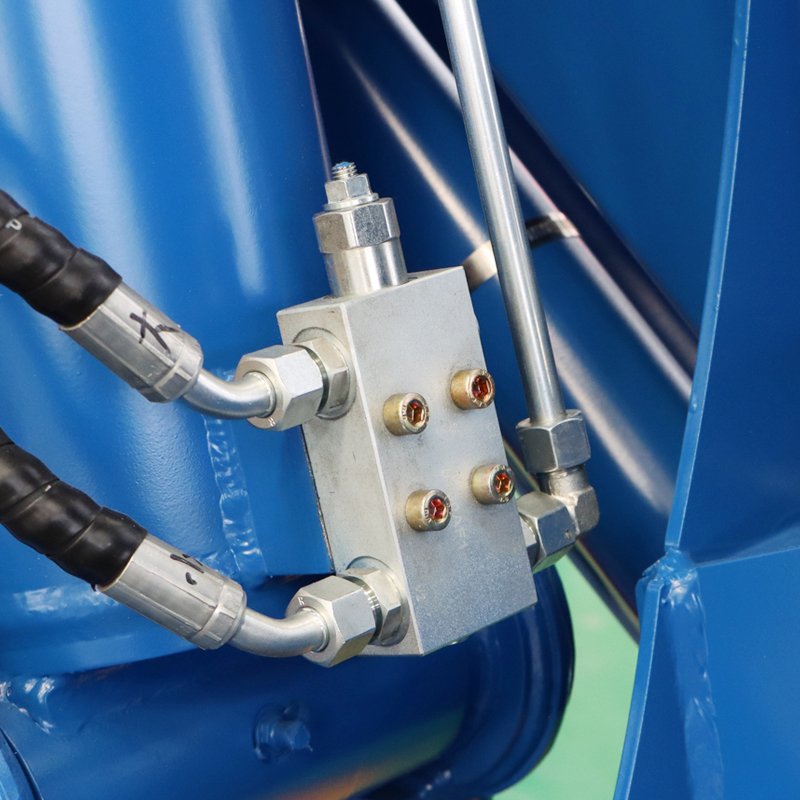

9. Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise, small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.

10. Ati-slewing impulse equipment that make vehicle running safely.

11. Water-based paint, more environmentally friendly.

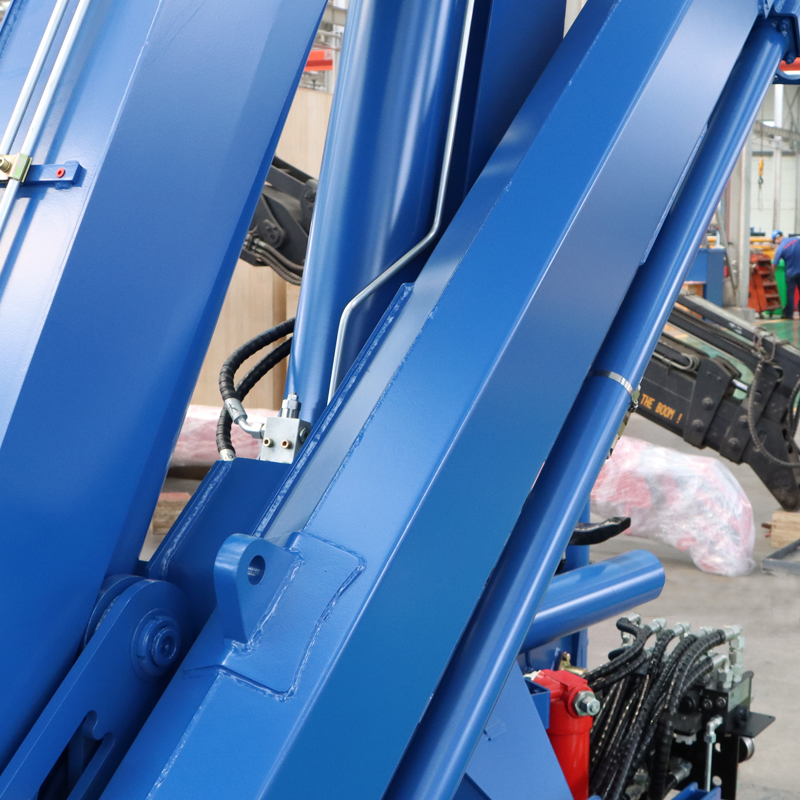

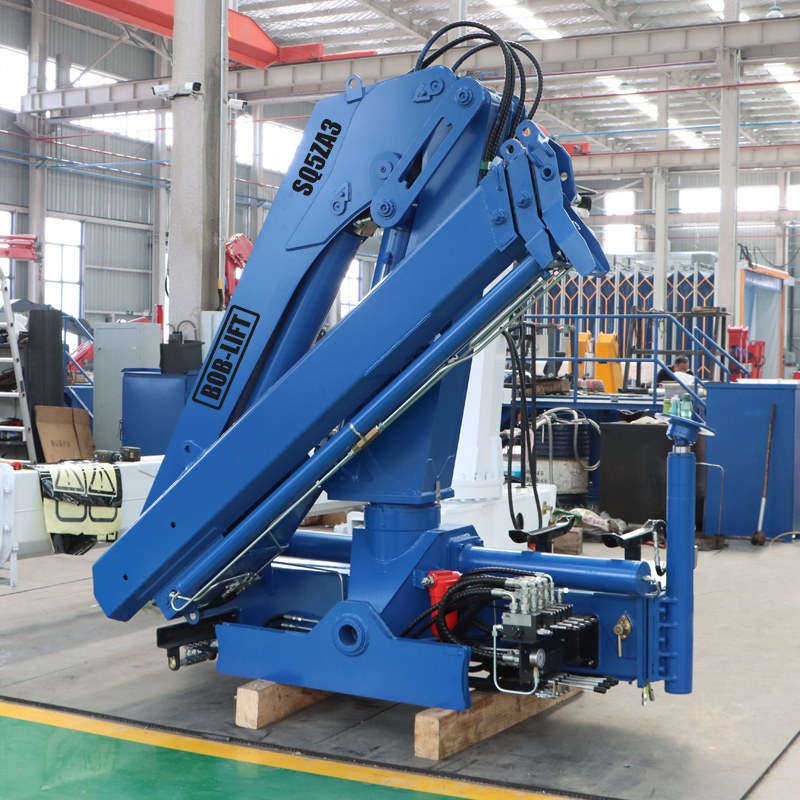

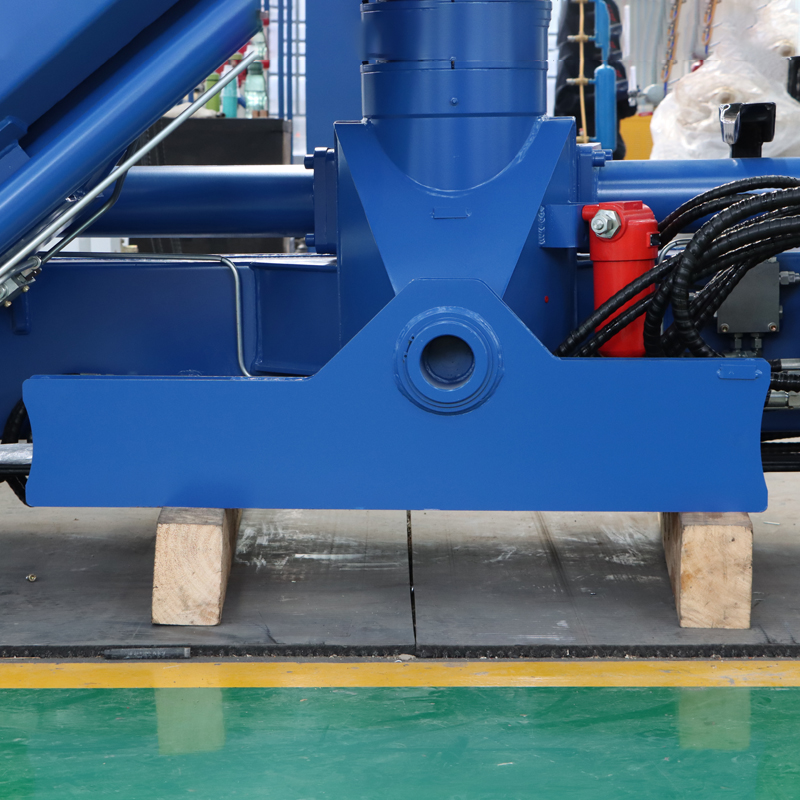

5 Ton Knuckle Boom Truck Mounted Crane details:
