800 kg Pickup Crane SQ08ZA3

What the 800 kg SQ08ZA3 is built for

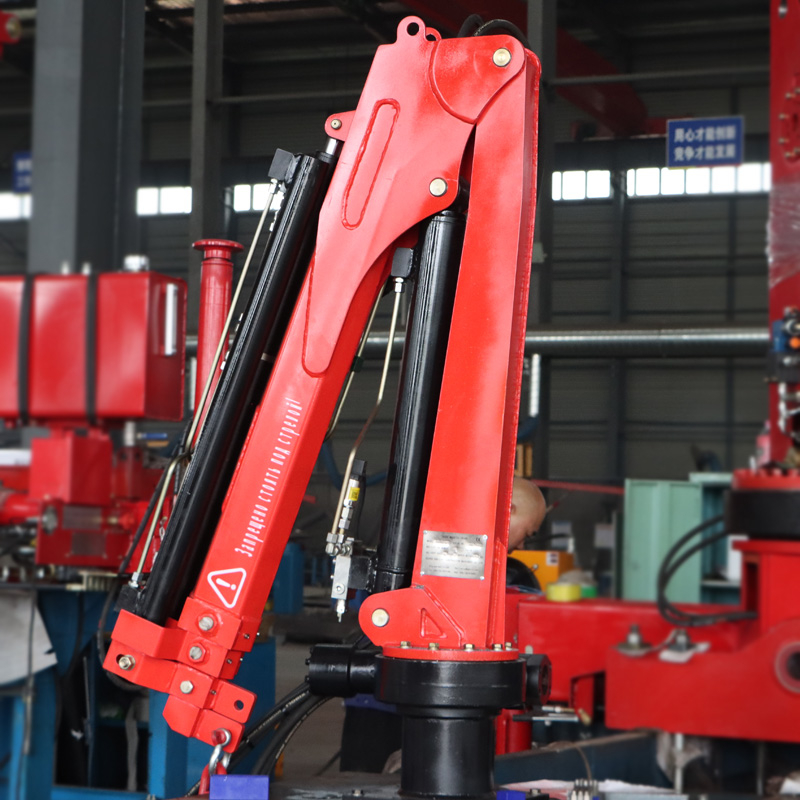

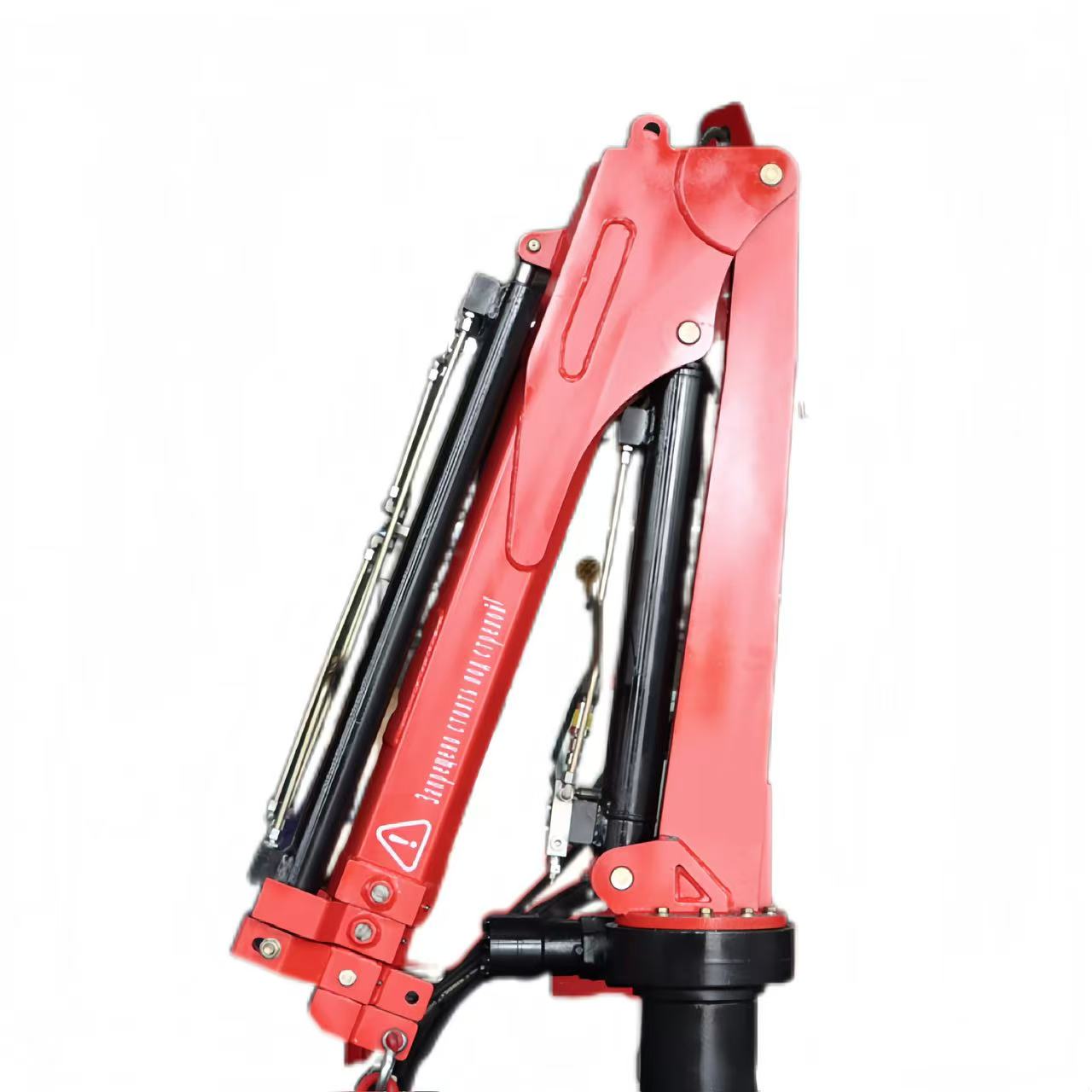

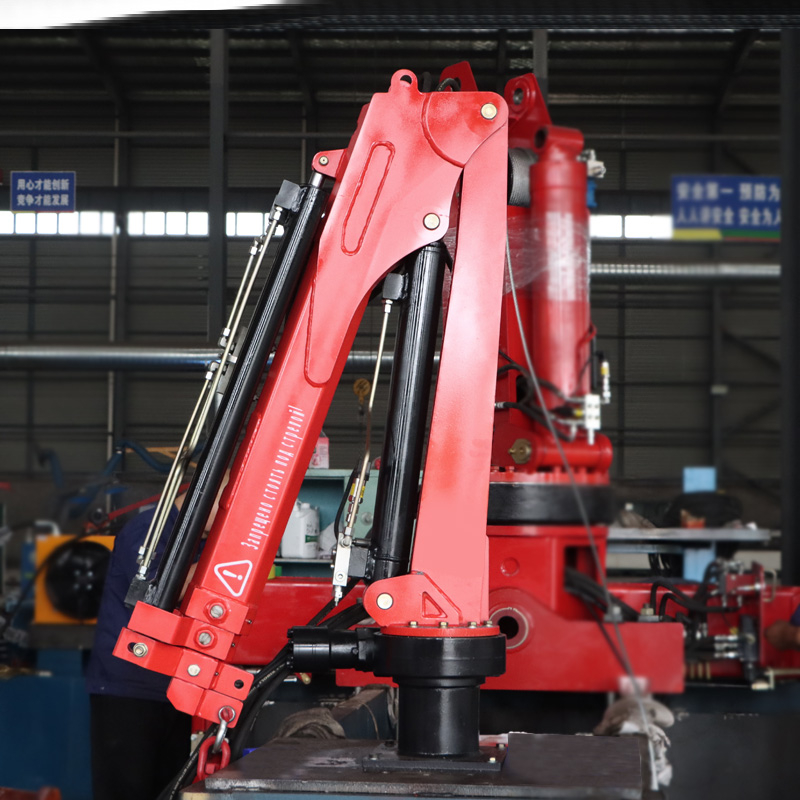

The SQ08ZA3 is the lightest model in our pickup range. It bolts to the bed of a pickup or light truck and sits on a 660 × 465 mm base. It suits short stops: loading generators, pumps, engines, gas cylinders, bagged materials and tool boxes, roadside and farm service work, and small deliveries where no forklift is available. Folded, it stands 1,614 mm tall; raised to 75°, the boom clears high tailgates and stacked cargo.

Set the outriggers before every lift so the load does not sit on the vehicle’s own suspension and tyres. Park on firm, level ground and respect each figure below. If you need more reach, compare it with the SQ08ZA3+1, which adds a manual extension and reaches 4.15 m.

The outriggers are the same as on the SQ08ZA3+1: two legs with a span of 1,464–3,020 mm and a height adjustable from 640 to 1,020 mm.

Load at each radius

Figures from the SQ08ZA3 load chart on this page, with the boom horizontal. Do not lift more than the chart shows at your working radius.

Mounting it on your pickup

These are the figures from the SQ08ZA3 dimension drawing that you or your body builder need:

Those 365 kg count against payload. Tell us the make, model and rated payload, and we check that bed, chassis and power source suit this unit before you order.

Warranty and service

BOB-LIFT covers the whole crane for 12 months. Common spare parts leave the factory within 48 hours, and our service team answers within 12 hours and can guide repairs by video. Cranes ship from Lianyungang, Qingdao or Shanghai.

All pickup cranes · How to choose a pickup truck crane

What the 800 kg SQ08ZA3+1 is built for

The SQ08ZA3+1 is sized for pickups and light trucks. It bolts to the bed of the pickup, and its two outrigger legs adjust from 1,464 to 3,020 mm in span and from 640 to 1,020 mm in height to steady the vehicle while the crane lifts. The boom extends in stages from 1.34 m to 4.15 m, so you can reach from the bed to the ground beside the vehicle. Typical jobs are loading generators, pumps, engines, gas cylinders, bagged materials and tool boxes, roadside and farm service work, and small deliveries where no forklift is available. Raised to 75°, the hook reaches about 5.7 m above the crane base.

Rated capacity always depends on radius. At 3.23 m the SQ08ZA3+1 lifts 300 kg, so check the weight of your heaviest regular load at the distance you need before you order. If you do not need the extra reach of the manual extension, compare it with the SQ08ZA3 without manual extension.

Load at each radius

Figures from the SQ08ZA3+1 load chart with the boom horizontal. Do not lift more than the chart shows at your working radius. Download the SQ08ZA3+1 load chart (PDF)

Mounting it on your pickup

The SQ08ZA3+1 mounts on the bed of a pickup or light truck. These are the figures from the dimension drawing that you or your body builder need:

Send us your vehicle make, model and payload, and we check that the bed, the chassis and the hydraulic power source suit the crane before you order. Download the SQ08ZA3+1 dimension drawing (PDF)

All pickup cranes · How to choose a pickup truck crane

Optional attachments

• Hydraulic gripper opened and closed by its own cylinder to grab and release loads.
• Clamshell bucket for loading, unloading and light digging of waste, chippings and soil.
• Orange peel grab for scrap and bulk material.
• Timber grapple for logs and timber.
• Auger for tree-planting holes, utility poles, foundation piles and soil sampling.

Certification

The SQ08Z series holds a CE certificate of conformity under the EU Machinery Directive 2006/42/EC.
