FY15
BOB-LIFT

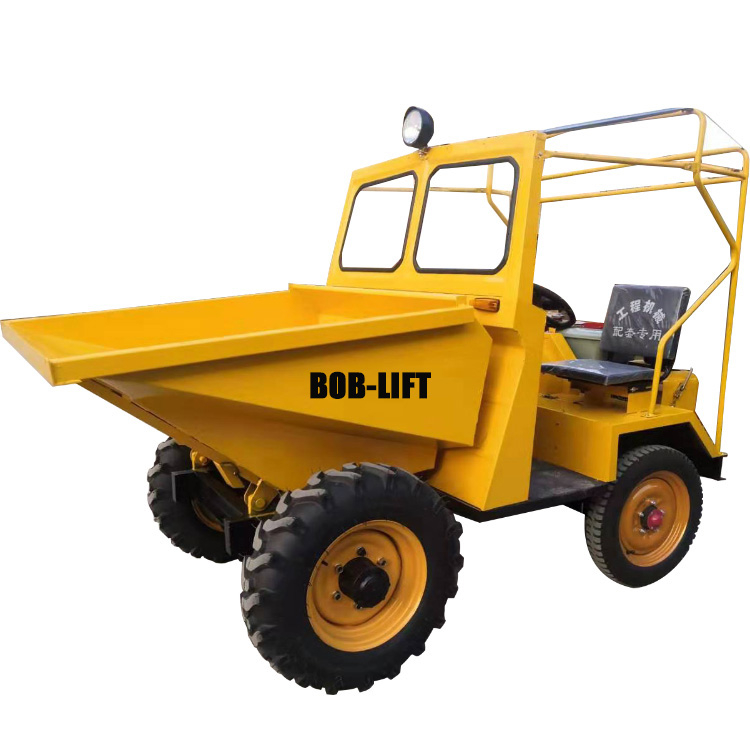

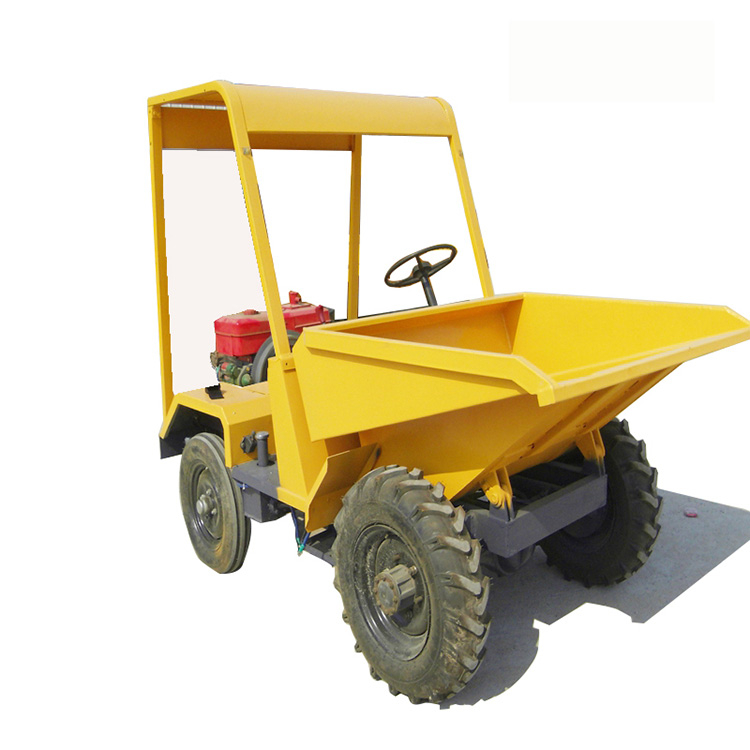

BOB-LIFT 1.5 Ton Mini Dumper is designed and produced according to Chinese standard. The two-wheel-drive small dump truck is equipped with a ZS1100 diesel engine, which rotates flat and improves mechanical efficiency. Direct gears make shifting easy and reliable. The bucket adopts gravity discharge, and the collision block type mechanical bucket returns, which can make the operation simple, and the discharge and bucket return are reliable. Low diesel consumption and direct injection engines can improve the power transmission efficiency of small dump trucks. This series of Mini Dumper has stable operation, reliable performance, simple technology, simple structure and convenient maintenance.
FY15 Mini Dumper | ||
model no. | FY15 | |
rated load (kg) | 1500 | |
bucket volume (m3) | 0.75 | |
discharge height (mm) | 240 | |
maximum gradient(%) | 21 | |
buck width | 1580 | |
traveling speed | Ⅰforward 1gear | 6.8 |
Ⅱforward 2gear | 9 | |
Ⅲforward 3gear | 22 | |
reward gear | 4.8 | |
minimum turning radius (mm) | 4000 | |
overall dimension (mm) | 2720*1600*2040 | |
wheel base (mm) | 1500 | |
Thread (mm) | 1230 | |
mini ground clearance (mm) | 200 | |
net weight (kg) | 1100 | |
Engine | engine model | ZS1100 |
rated power(kw) | 12.1 | |
rated power(r/min) | 2200 | |
tipping model | hydraulic | |
electic starting | Yes | |
BOB-LIFT 1.5 Ton Mini Dumper is designed and produced according to Chinese standard. The two-wheel-drive small dump truck is equipped with a ZS1100 diesel engine, which rotates flat and improves mechanical efficiency. Direct gears make shifting easy and reliable. The bucket adopts gravity discharge, and the collision block type mechanical bucket returns, which can make the operation simple, and the discharge and bucket return are reliable. Low diesel consumption and direct injection engines can improve the power transmission efficiency of small dump trucks. This series of Mini Dumper has stable operation, reliable performance, simple technology, simple structure and convenient maintenance.
FY15 Mini Dumper | ||
model no. | FY15 | |
rated load (kg) | 1500 | |
bucket volume (m3) | 0.75 | |
discharge height (mm) | 240 | |
maximum gradient(%) | 21 | |
buck width | 1580 | |
traveling speed | Ⅰforward 1gear | 6.8 |
Ⅱforward 2gear | 9 | |
Ⅲforward 3gear | 22 | |
reward gear | 4.8 | |
minimum turning radius (mm) | 4000 | |
overall dimension (mm) | 2720*1600*2040 | |
wheel base (mm) | 1500 | |
Thread (mm) | 1230 | |
mini ground clearance (mm) | 200 | |
net weight (kg) | 1100 | |
Engine | engine model | ZS1100 |
rated power(kw) | 12.1 | |
rated power(r/min) | 2200 | |
tipping model | hydraulic | |
electic starting | Yes | |
