FY50
BOB-LIFT

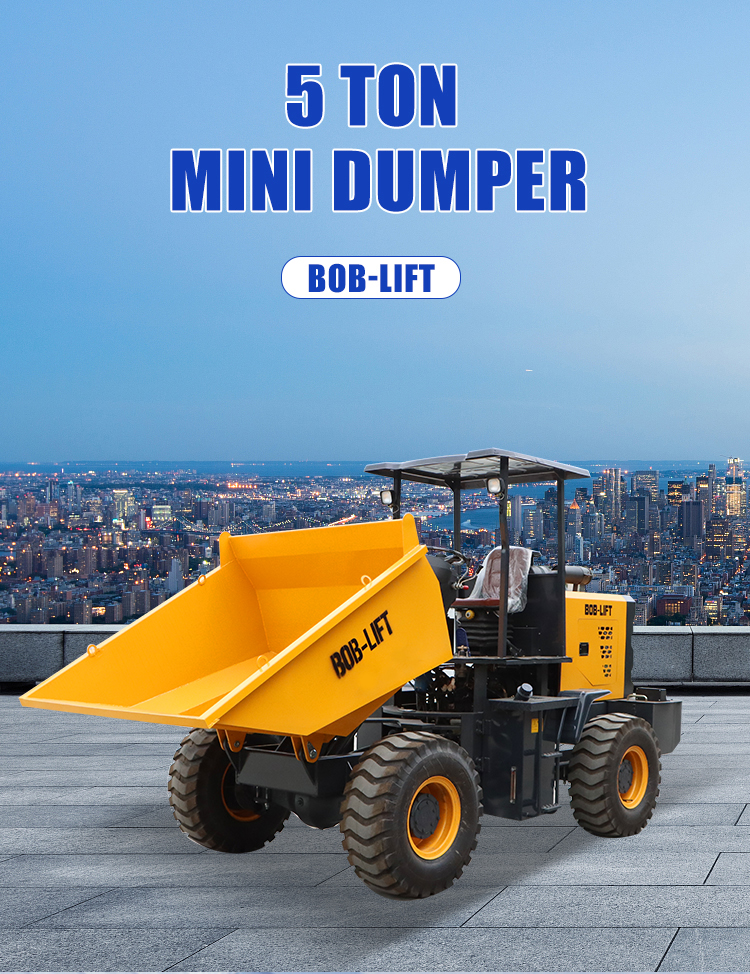

There are several reasons why the 5 Ton Mini Dumper is a great steal. However, some of the most basic ones are its reliable power, thickened steel plates, transmission speed ratio, performance, etc.
The 5 Ton Mini Dumper has a rated power of 41kw and a 2.5 cubic-meter bucket capacity. The dumper has a 5-ton rated load and can handle various work environments with average transportation demands. The mini dumper has a low fuel consumption and a big capacity battery that is easy to start in cold weather.

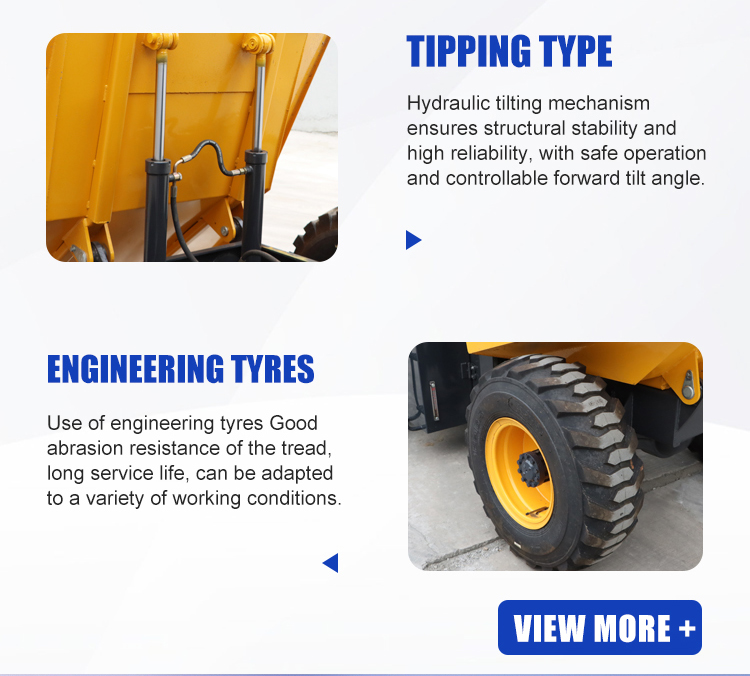

You also get a wider tyres option for working in bumpy and muddy roads. The dumper has a low walking speed and is great for transporting bulky materials over short distances. It is also maneuverable, compact, easy to operate, and flexible. It has a large capacity, a wide gear shift, and high traction. Lastly, it has a hydraulic unloading and lifting feature to improve its transportation efficiency and reduce labor intensity.
FY50 mini dumper specification | ||
model no. | FY50 | |

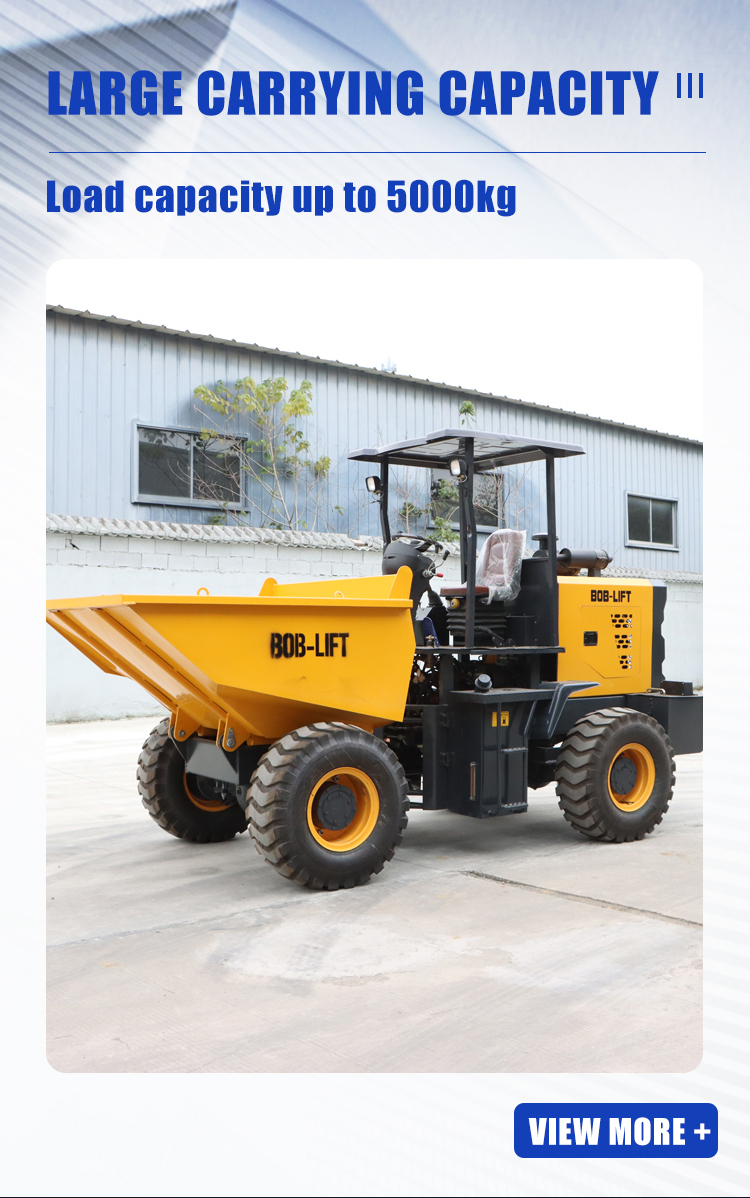

rated load (kg) | 5000 | |
bucket volume (m3) | 2.5 | |
discharge height (mm) | 390 | |
maximum gradient(%) | 21 | |
buck width | 1700 | |
traveling speed | Ⅰforward 1gear | 9 |
Ⅱforward 2gear | 8 | |
Ⅲforward 3gear | 22 | |
reward gear | 7.5 | |
minimum turning radius (mm) | 5000 | |
overall dimension (mm) | 5500*1700*27500 | |
wheel base (mm) | 2210 | |
Thread (mm) | 1400 | |
mini ground clearance (mm) | 200 | |
net weight (kg) | 4000 | |
Engine | engine model | JD490 |
rated power(kw) | 41 | |
rated power(r/min) | 2400 | |
tipping model | Hydraulic(4 wheel drive) | |
electic starting | Yes | |
