FC10
BOB-LIFT

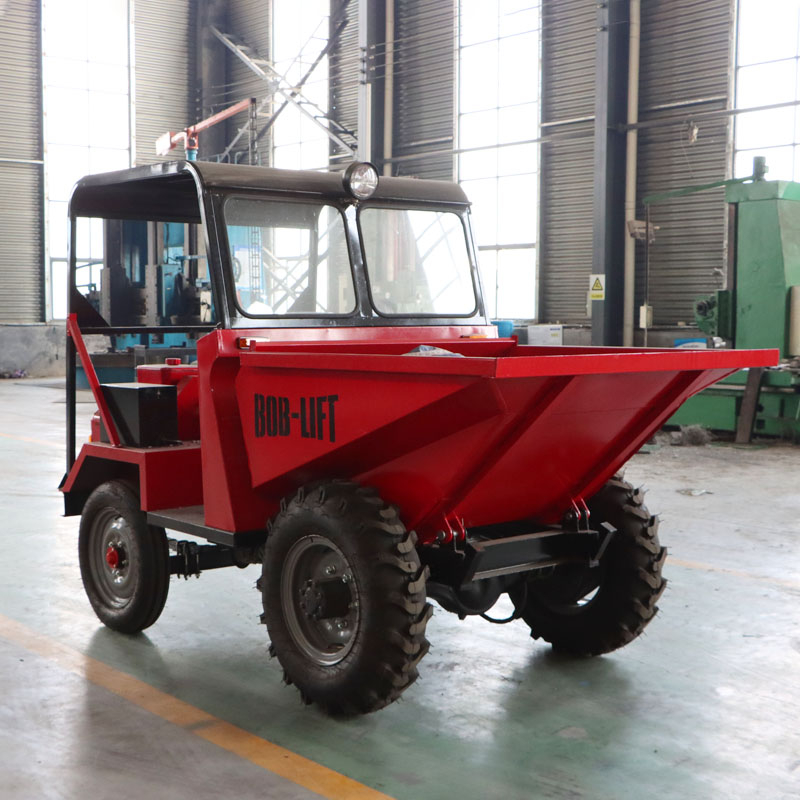

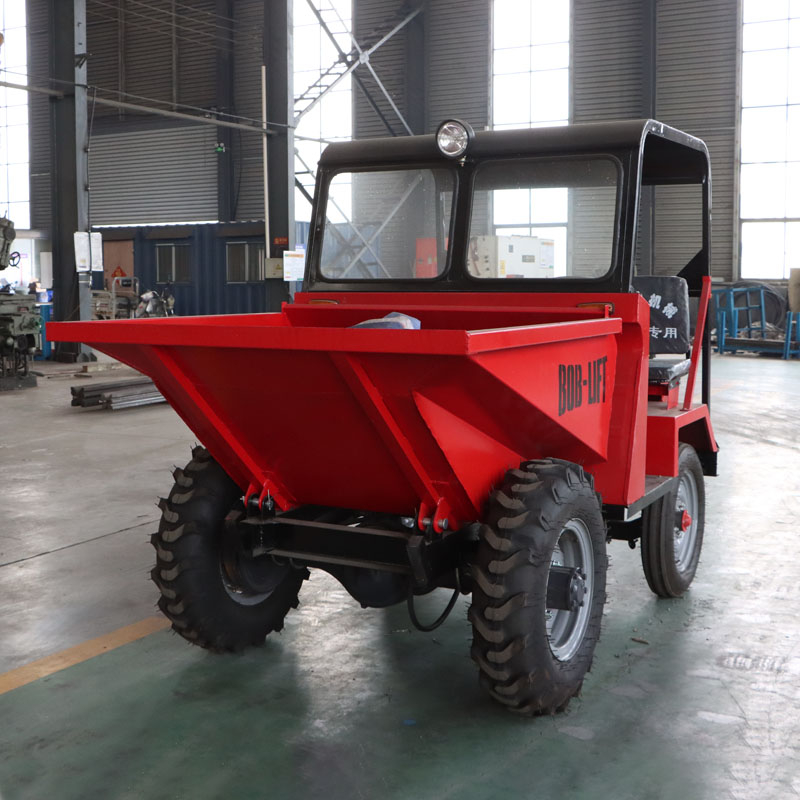

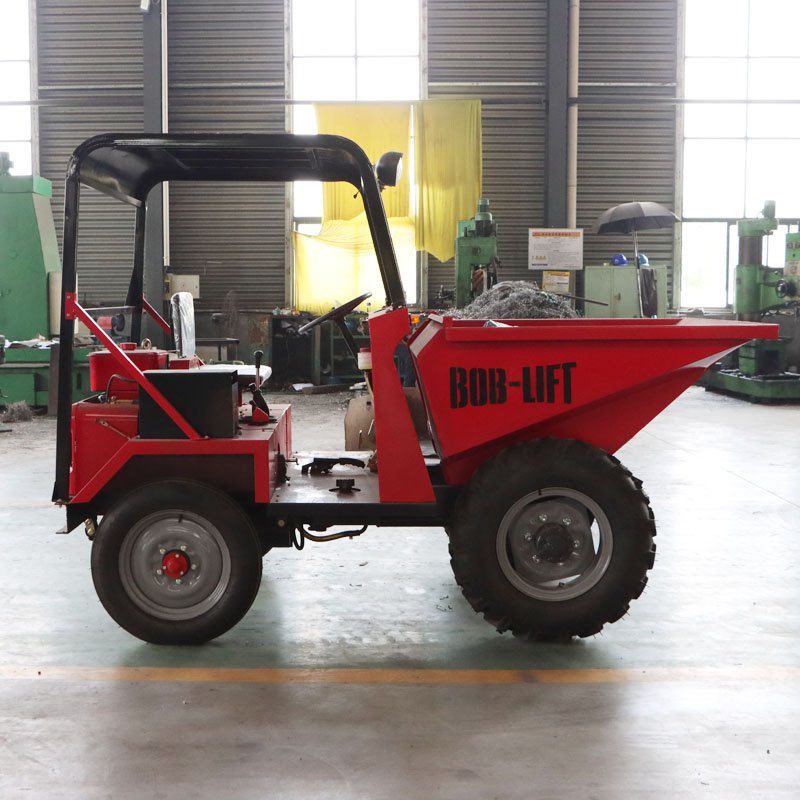

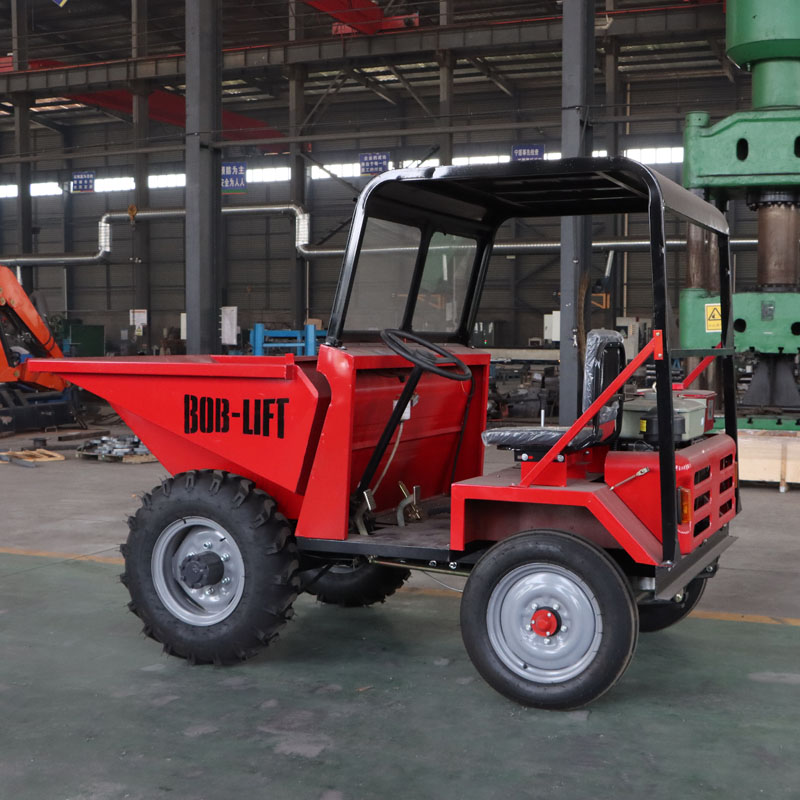

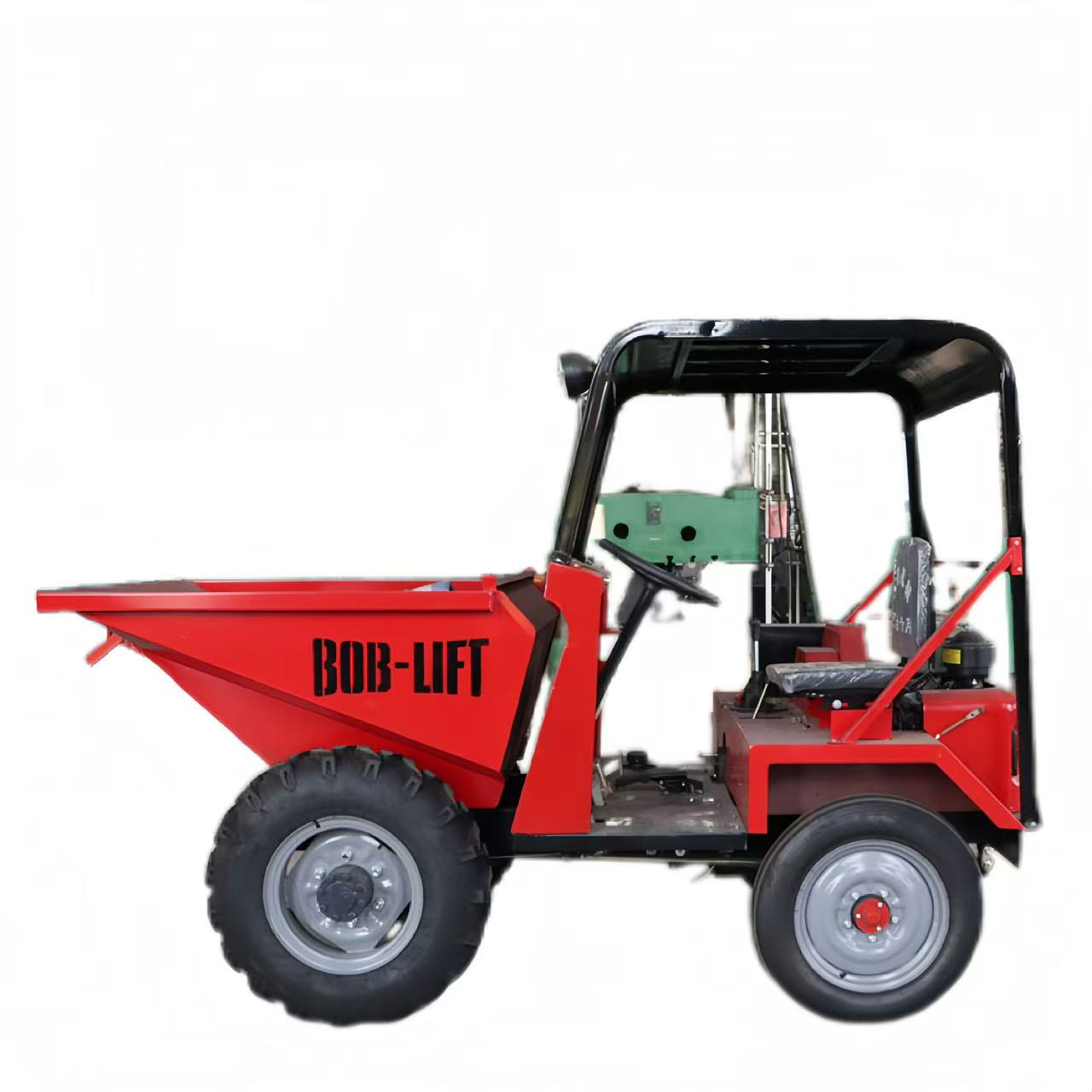

BOB-LIFT's 1 Ton Mini Dumper is a reliable machine that is easy for operators to use. The mini dumper has various features that make work easier including a gravity discharge design. The dumper is stable, easy to operate, and reliable.
The 1 Ton Mini Dumper has a 12.1KW engine that produces a lot of power and has a low fuel consumption. The mini dumper has a big battery capacity that starts easily even in cold weather. The dumper has wide off road tires that work in smooth, muddy, and bumpy surfaces. It also has a low walking speed and is great for transporting materials over short distances.
The 1 Ton Mini Dumper is easy for operators to maneuver and has a large capacity. It's also quite strong and can transport heavy materials. The dumper has a good climbing ability and a small operating radius. This means that operators can use it in tight spaces that could be troublesome with bigger dumpers.
FC10 Mini Dumper Specification | |||
Model No. | FC10 | ||

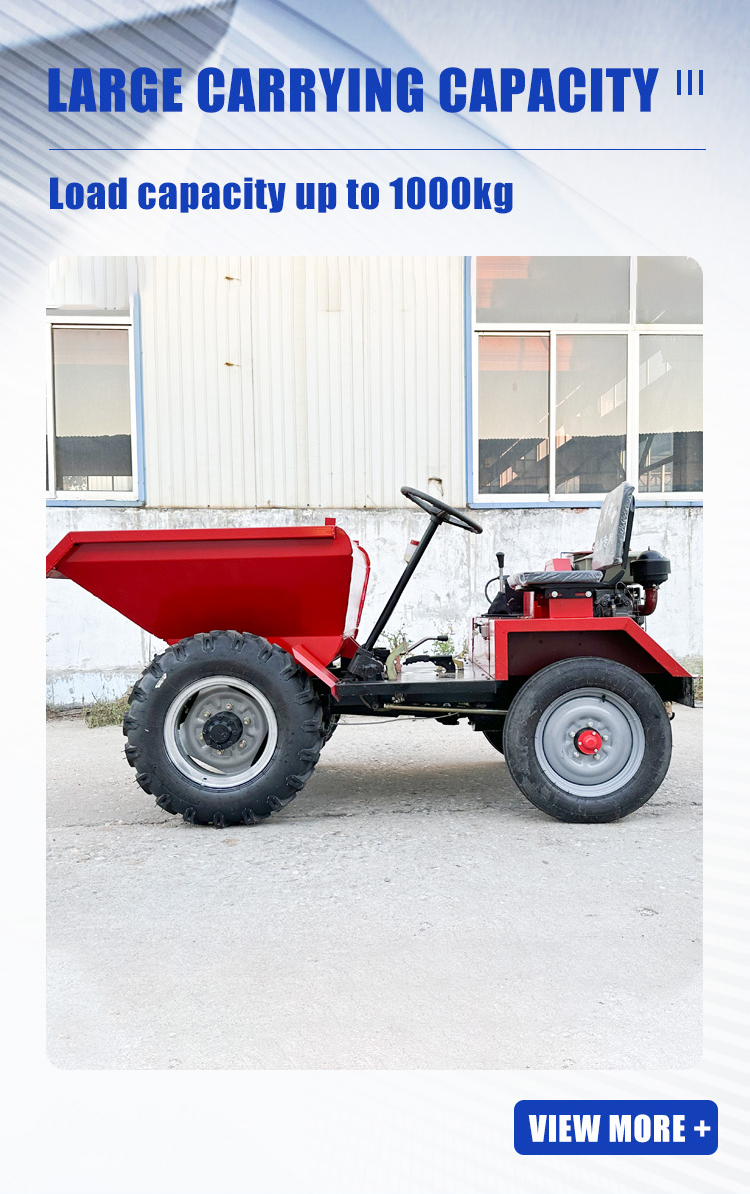

Rated Load | kg | 1000 | |

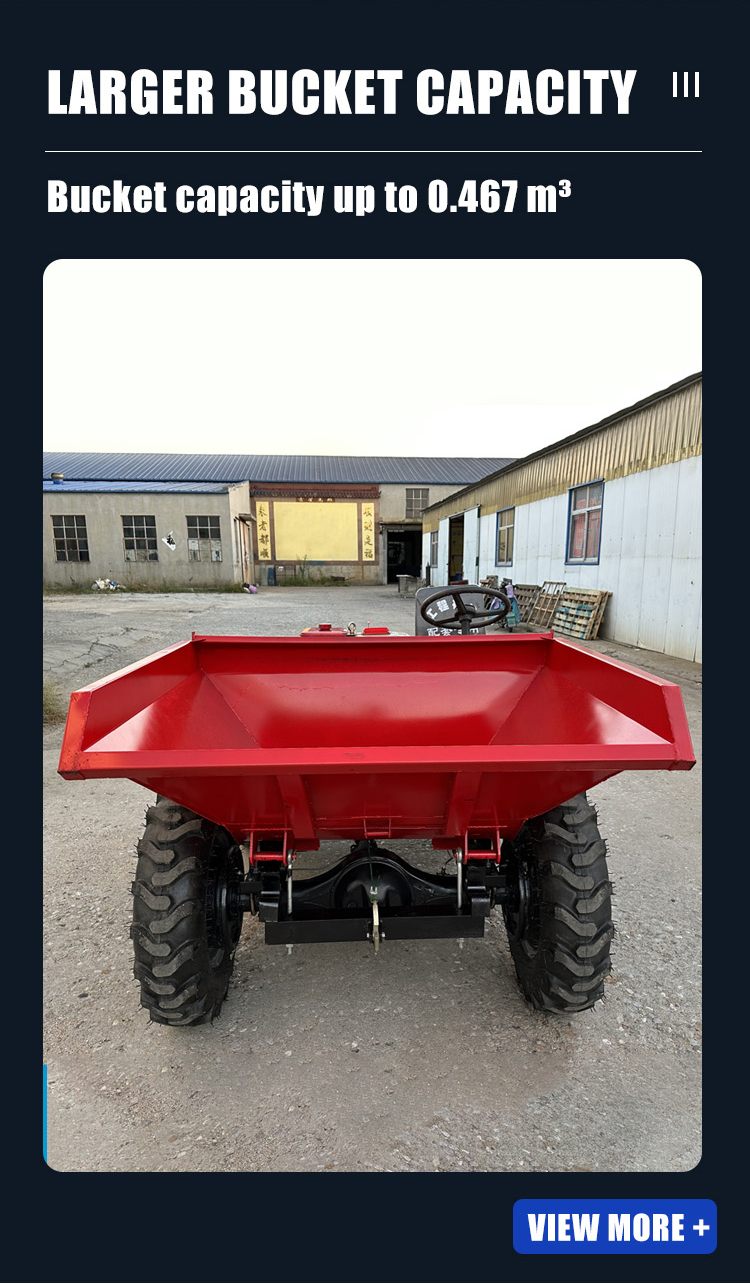

Bucket Volume | m3 | 0.5 | |
Discharge Height | mm | 150 | |
Maximum Gradient | % | 21 | |
Buck Width | mm | 1480 | |
Traveling Speed | I forward 1 gear | Km/h | 6.8 |
II forward 2 gear | Km/h | 9 | |
III forward 3 gear | Km/h | 22 | |
Rear gear | Km/h | 4.8 | |
Minimum Turning Radius | mm | 4000 | |
Overall Dimension | mm | 2620*1600*1480 | |
Wheel Base | mm | 1500 | |
Thread | mm | 1230 | |
Mini Ground Clearance | mm | 200 | |
Net Weight | kg | 1000 | |
Engine | Engine Model | ZS1100 | |
Rated Power | KW | 12.1 | |
Rated Speed | r/min | 2200 | |

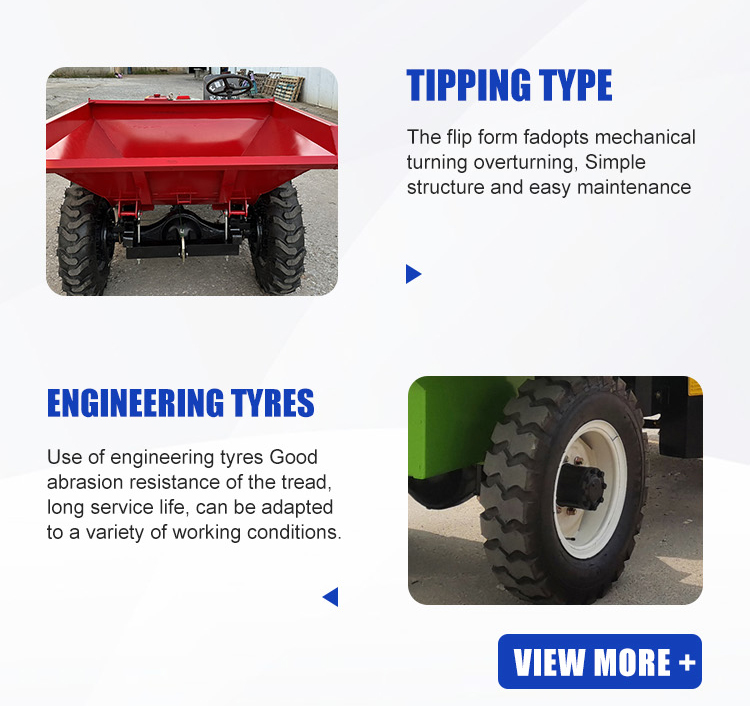

Tipping Model | Mechanical | ||
Electric Starting | Yes | ||
