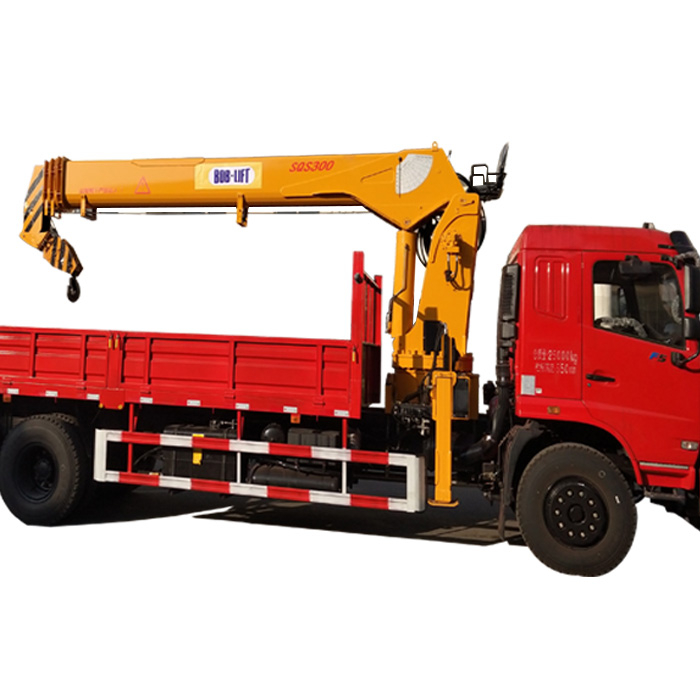

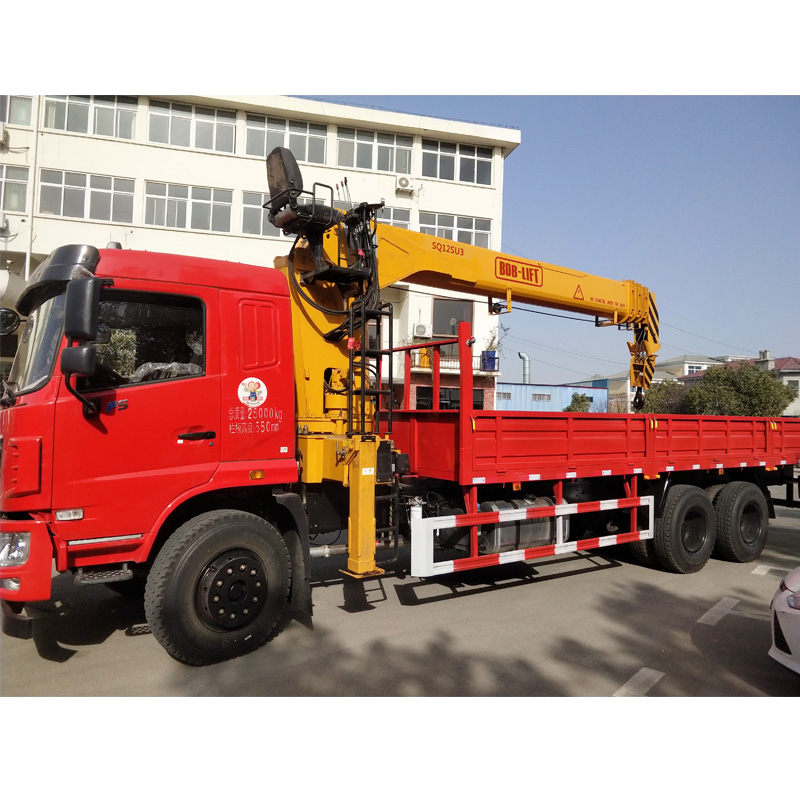

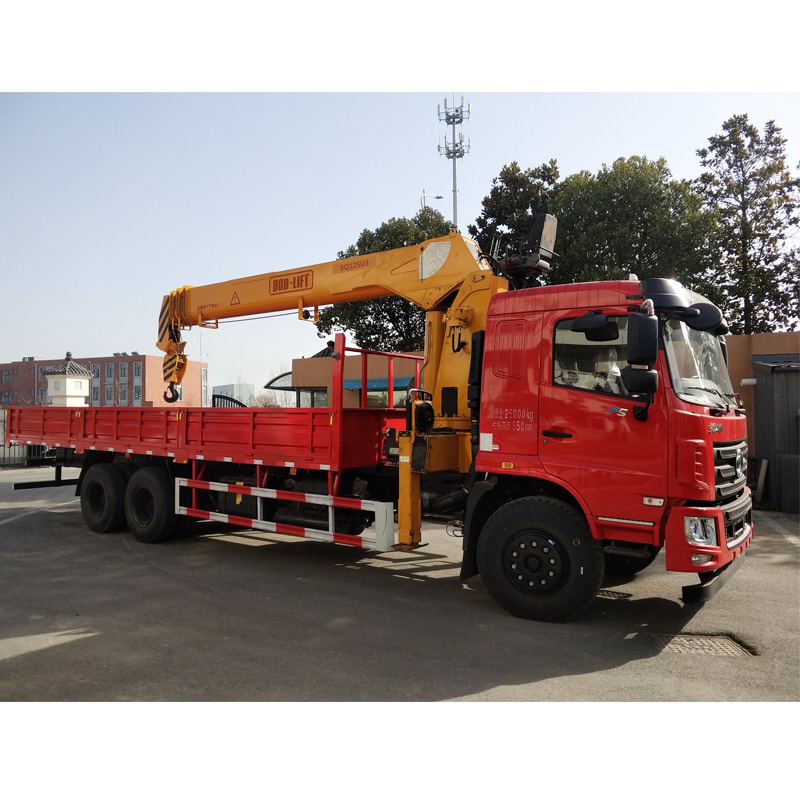

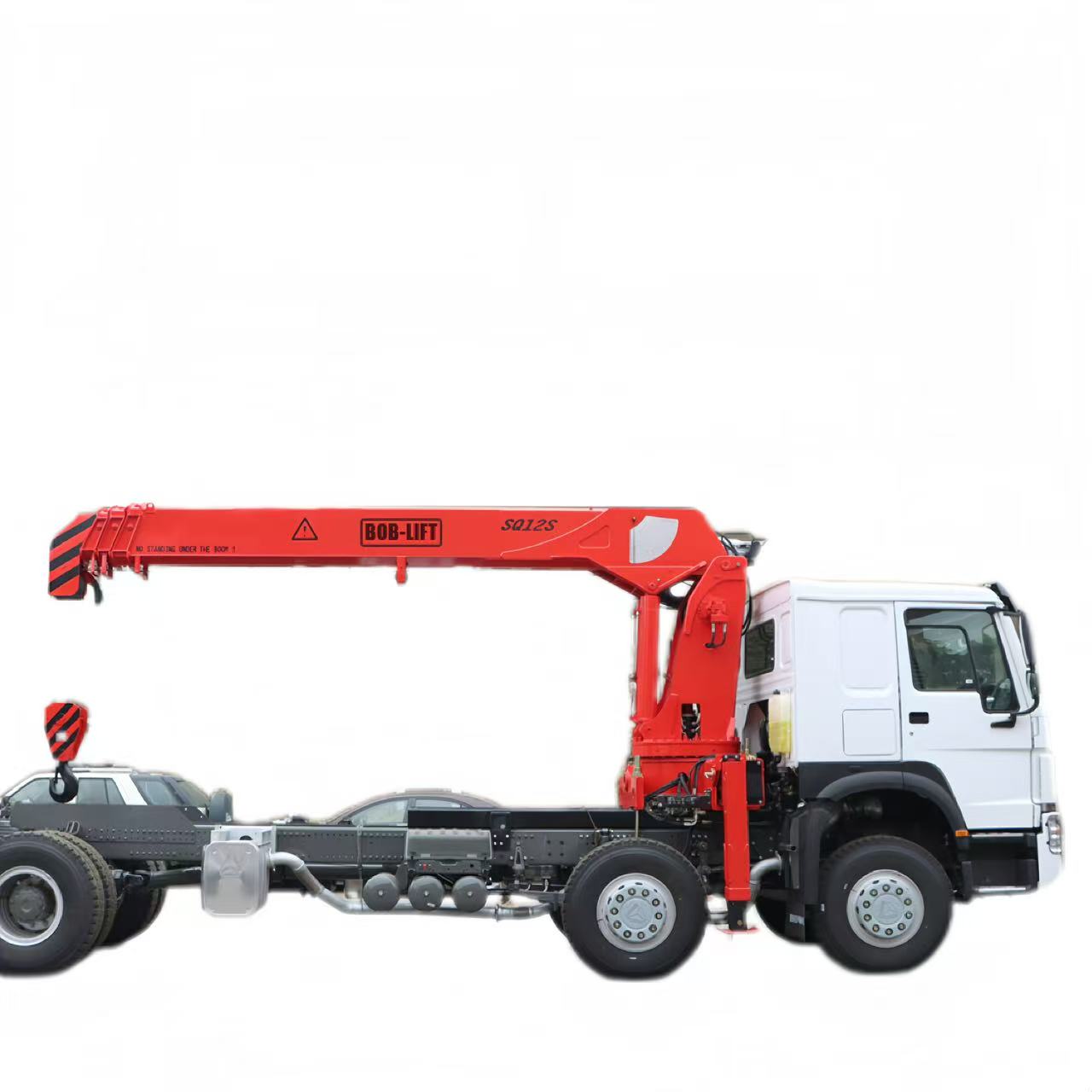

SQ12SU4
BOB-LIFT
As a leading manufacturer and supplier of 12 Ton Telescopic Boom Truck Mounted Cranes in China, BOB-LIFT is committed to upholding the values of sincerity, stability, innovation, and cooperation. From the inception of our company, we have implemented rigorous quality system requirements in every aspect, including product design, procurement, manufacturing, testing, and service. Our unwavering dedication to these standards sets us apart.
Throughout the years, we have focused on extensive research in the field of 12 Ton Telescopic Boom Truck Mounted Cranes. Our development strategy revolves around establishing ourselves as pioneers in technology and delivering excellent service within China's truck-mounted crane industry. Trust in our expertise and count on us to provide you with cutting-edge solutions for all your lifting needs.
| Max Lifting Capacity | Ton | 12 |
| Max Lifting Moment | Ton.m | 30 |
| Recommend Power | KW | 30 |
| Hydraulic System Flow | L/min | 63 |
| Hydraulic System Pressure | MPa | 26 |
| Oil Tank Capacity | L | 160 |
| Installation Space | mm | 1300 |
| Self Weight | kg | 4550 |
| Rotation angle | ° | 360 Continuous |
1. Advanced development & analysis make sure design is very reliable

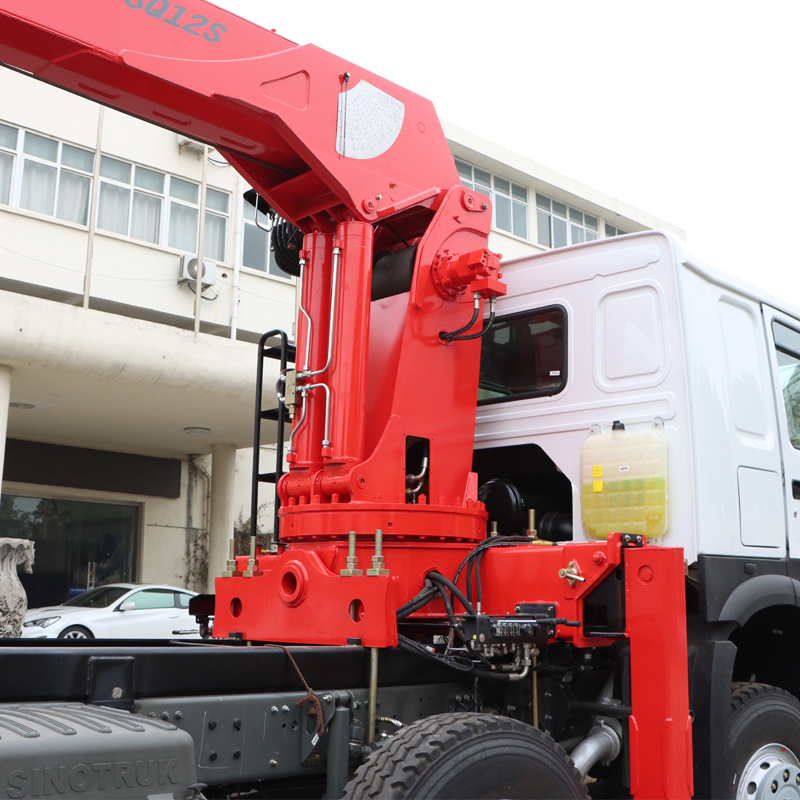

2. Using two-section telescopic cylinder design, one of the cylinder push the second large boom, another cylinder push the rest of the telescopic boom by the pulley block and wirerope. To ensure that the crane has strong lifting capacity in the middle distance and effectively protect the wire rope in the boom.
3. The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
4. The boom interface is made of strong steel plate, and the U-shaped arm is used for the crane above 8T, which makes the cross-section bending resistance stronger.
5. The crane above 6.3T adopts aquare legs, which can better protect th cylinder.
6. Compact boom head and tail design, make the boom length to reach maximum, prolong the working life of hydraulic system.
7. The integer lifting winch improved the working efficient greatly and prolonged work life of hydraulic system.
8. Integral boom hear structure with more strength. Boom head adopting integral structure, greater intensity. Split head design reduces the boom head carrying capacity.
9. Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise, small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.
10. Ati-slewing impulse equipment that make vehicle running safely.
11. Water-based paint, more environmentally friendly.
